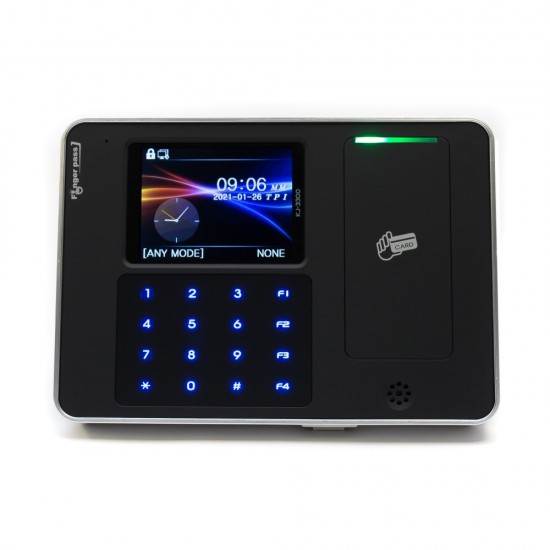

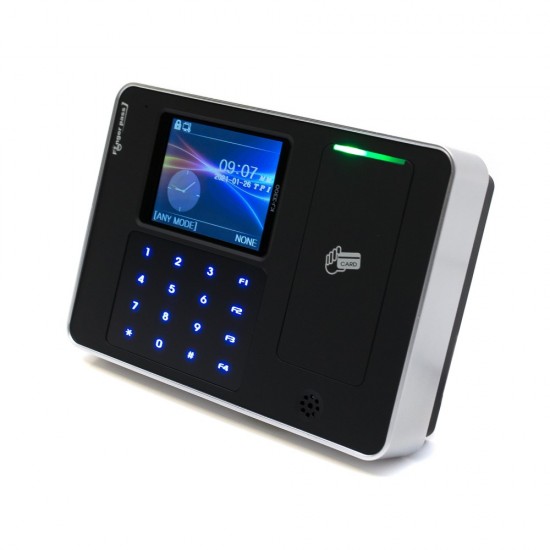

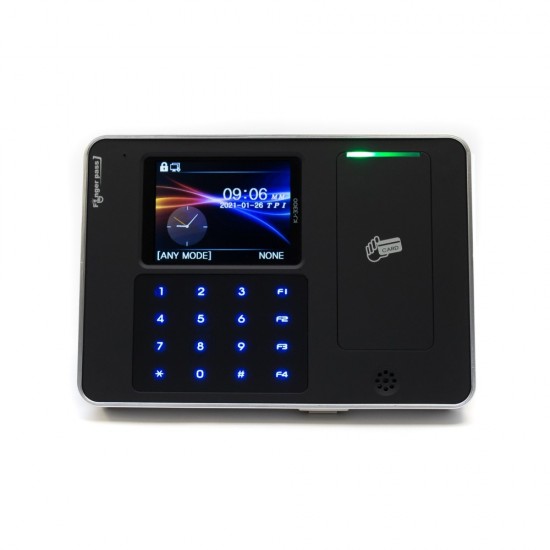

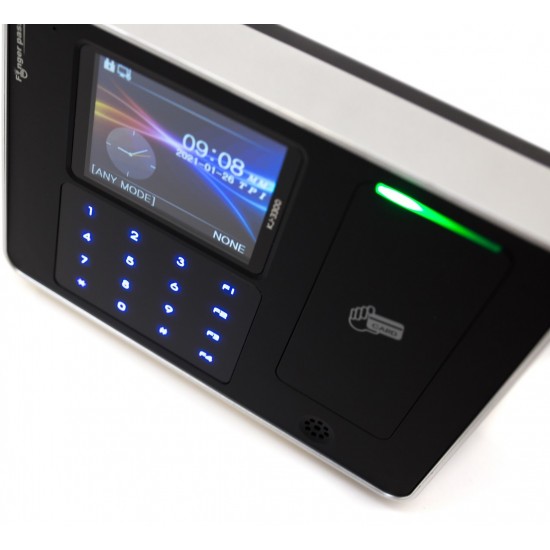

ICS KJ-3300 Card Time Attendance-Access System

ICS KJ-3300 Card Time Attendance-Access System
ICS KJ-3300 Card Time Attendance-Access System
ICS KJ-3300 Card Time Attendance-Access System
ICS KJ-3300 Card Time Attendance-Access System
ICS KJ-3300 Card Time Attendance-Access System
ICS KJ-3300 Card Time Attendance-Access System
ICS KJ-3300 Card Time Attendance-Access System
ICS KJ-3300 Card Time Attendance-Access System
ICS KJ-3300 Card Time Attendance-Access System

Downloads

File Size
KJ-3300_EN (1).pdf 1.33MB Download
KJ-3300_GR (1).pdf 959.83KB Download

Description

Time Attendance-Access System ICS KJ-3300 Card

Operates with card detection and touch panel. 2.8inch Color TFT LCD screen display. Display detailed information such as date, time user guide, and user list, etc. Supports multiple languages. GUI Touch Keypad. User friendly GUI and Touch keypad provide an easy way to access the system. IP 65. Suitable for outdoor installation


Specifications

Access Control- Time Attendance Controllers
Monitor Controller 2.8'' TFT Color LCD
CPU Controller 32biT
Sensor 500dpi Optical sensor/ Multi Spectra Image sensor (Option)/ RF reader: 125KHz / 13.56MHz (HID prox, Indala, Mifare, EM, Felica)
Communication Type TCP/IP, RS-485
Interface controller Wiegand, USB Memory Card
Inputs 4 In
Outputs 2 0ut
Temperature/ Humidity Controller IP 65 - Suitable for outdoor installation
Dimensions /weight Controller 115(H)x165(W)x49(D)mm
Additional features – controller FAR/FRR: 0.00001/0.01 (%)/ Event log: Maximum 500,000 events/ Operation Mode: Password, card mixture/ Power: 12V DC 500mA/ Language : Multiple Language/ GUI Touch Keypad, User friendly GUI and Touch keypad provide an easy way to access the system
