MS836 1D Scanner 1D

MS836 1D Scanner 1D
MS836 1D Scanner 1D
MS836 1D Scanner 1D
MS836 1D Scanner 1D
MS836 1D Scanner 1D
MS836 1D Scanner 1D
MS836 1D Scanner 1D


File Size Download
MS836_Brochure .pdf 1.13MB Download

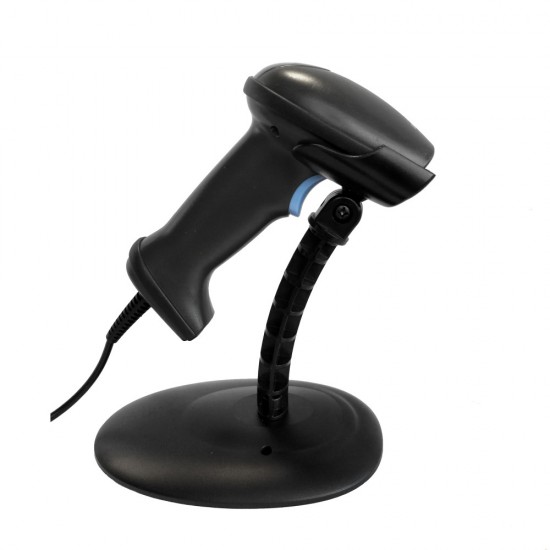

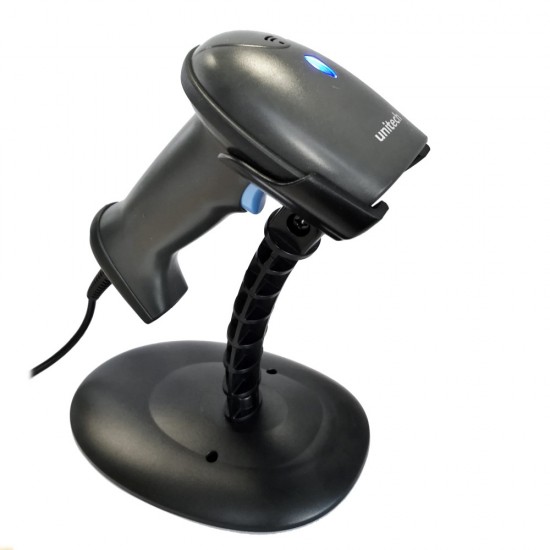

Scanner Unitech MS836 1D

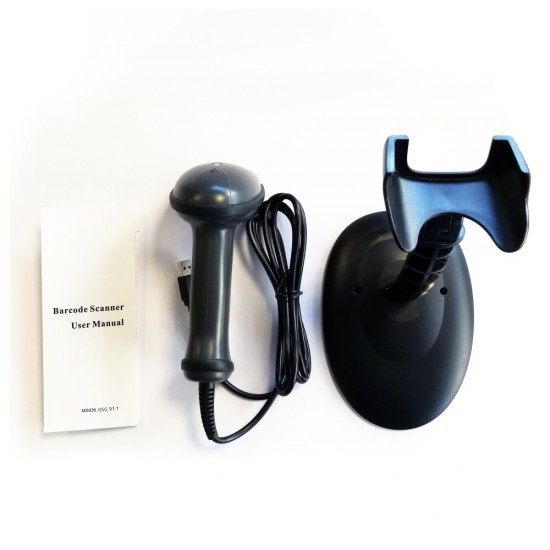

The MS836 reads 3 mil barcodes and is designed to meet your 1D barcode scanning needs at great pricing! All-in-one box; the MS836 comes standard with 1.9m USB cable, hands-free stand and 5-year no hassle warranty. Quality 1D laser at great price! Snappy performance, capability to easily read 3 mil 39 barcodes, including long labels up to 40 alphanumeric characters. Multiple scanning modes; supports trigger mode, presentation mode and auto-sensing mode. Supports print contrast reading up to 15%. Durable design1.5 meter drop test and IP42-rated.


Reading mode 1D Laser engine
Scanning range/ Βάθος πεδίου 250mm
Scanning range/ Width of Field 220mm
Scan Rate Ρυθμός σάρωσης 100 scans/sec
Resolution 3 mil
Interfaces Interface USB (USB cable 1.9 m straight)
Dimensions L95 mm x W70 mm x H160 mm
Weight 150g
Symbologies 1D: EAN-8, EAN-13, UPC-A,UPC-E,Code 39, Code 128, EAN128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, GS1,etc
Additional features Light Source: Visible Laser Diode 650nm/ Print contrast: 15% UPC / EAN 100%/ Indicator: Buzzer, LED/ Operation Voltage: DC 3V to 5V/ Operation mode: < 85 mA/ Standby mode : < 36 mA/ IP rate: IP42/ Operating Temperature: 0°C to 45°C/ Storage Temperature: -20°C to 60°C/ Relative Humidity: 5% to 85% relative humidity, non-condensing/ Mechanical Shock: 1.5 M/ Trigger Mode, Automatic Mode/ Accessories: Hands-free stand, USB cable.
