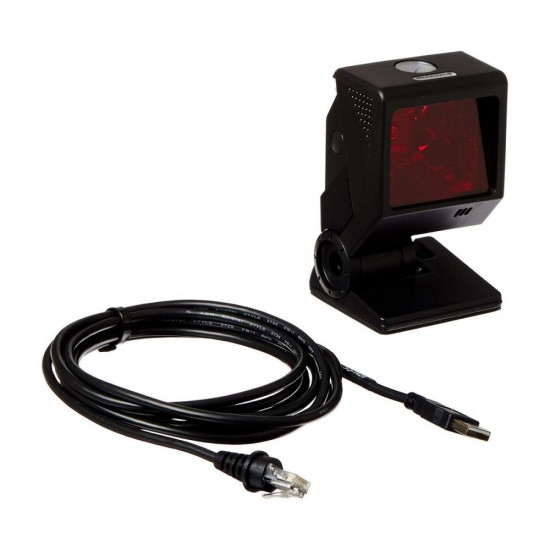

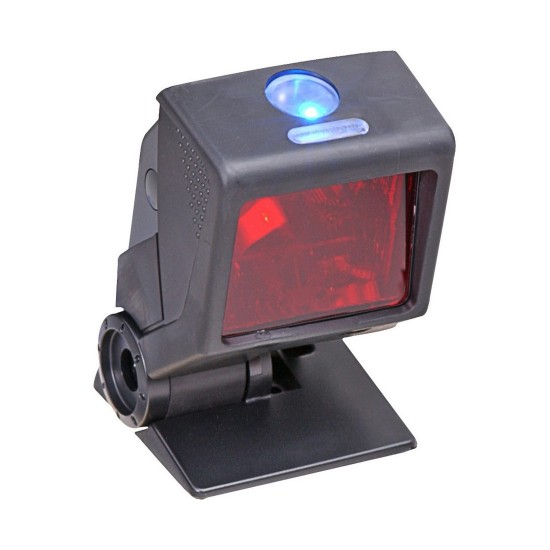

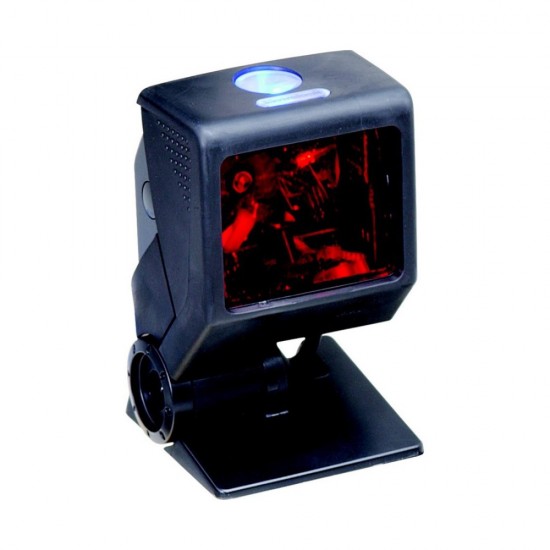

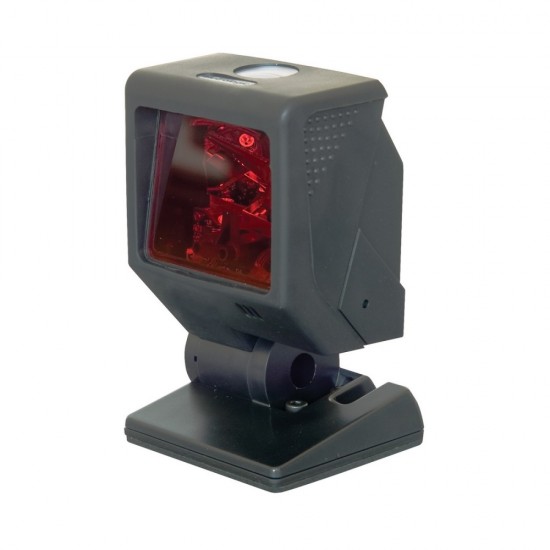

MS3580 Quantum 1D Scanner

MS3580 Quantum 1D Scanner

Downloads

File	Size	Download
ms3580-quantumt-ms-3580_quantum.pdf	890.55KB	Download

Description

Scanner MS3580 Quantum 1D

The QuantumT scanner’s small footprint and numerous stand options minimize required counter space, increasing available room for merchandise and advertisement displays. And the device’s rugged, rubber housing provides the necessary protection for daily use. Outstanding 1,650 scans/second provides aggressive first-pass scanning, reducing the time it takes to scan products, increasing customer satisfaction and employee efficiency. Customize the scan pattern and operate it in either a handheld or hands-free fashion.

HONEYWELL

Specifications

Scanners
Reading mode	1D omnidirectional
Scanning range/ Βάθος πεδίου	19 mm - 273 mm (.75"- 10.75")
Scanning range/ Width of Field	0.127 mm (5.0 mil)
Scan Rate Ρυθμός σάρωσης	1650 scan lines per second; Single line: 80 scan lines per second
Interfaces	RS232, Keyboard Wedge, Stand-Alone Keyboard, Light Pen Emulation, RS485, USB (low speed and full speed), Laser Emulation, RS232 TTL
Dimensions	63 mm x 50 mm x 68 mm
Weight	6 oz (170 g)
Ambient light	650 nm
Symbologies	All standard 1-D bar codes including GS1 DataBar
Additional features	Voltage Supply: 5VDC ± 0.25V/ Operating Power: 1.375 W/ Standby Power: 1.0 W/ Operating Current:275 mA typical at 5VDC/ Standby Current: 230 mA typical at 5VDC/ DC Transformers: Class II; 5.2VDC @ 1 A/ Operating Temperature: -20°C to 40°C (-4°F to 104°F)/ Storage Temperature: -40°C to 60°C (-40°F to 140°F)/ Humidity: 5% to 95% relative humidity, non-condensing.
