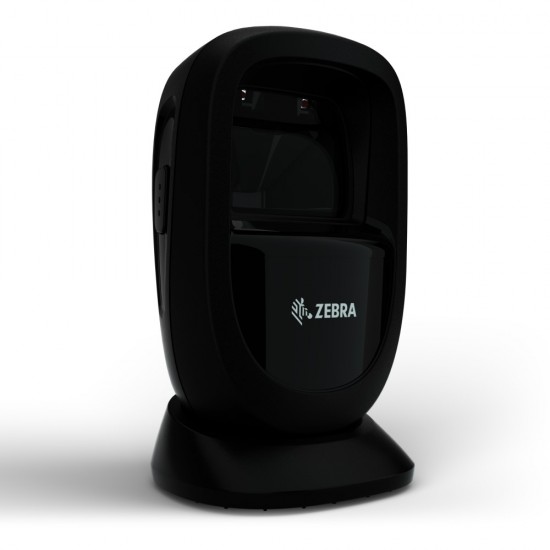

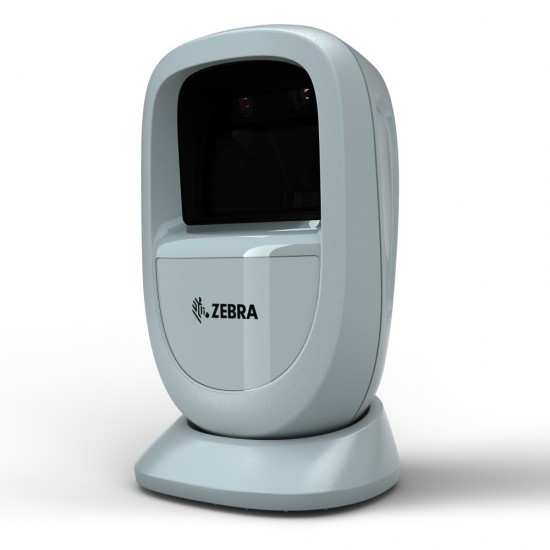

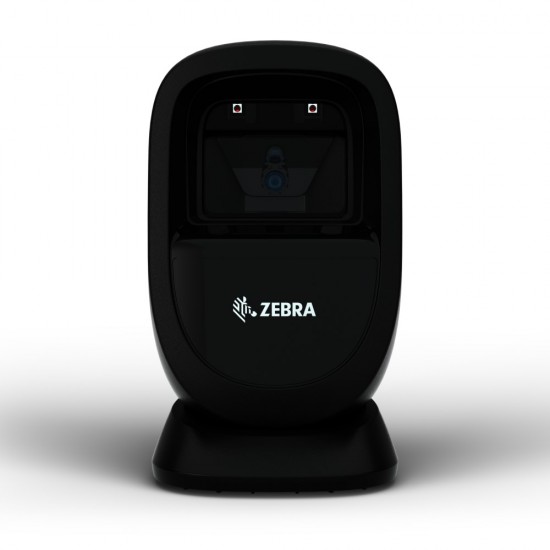

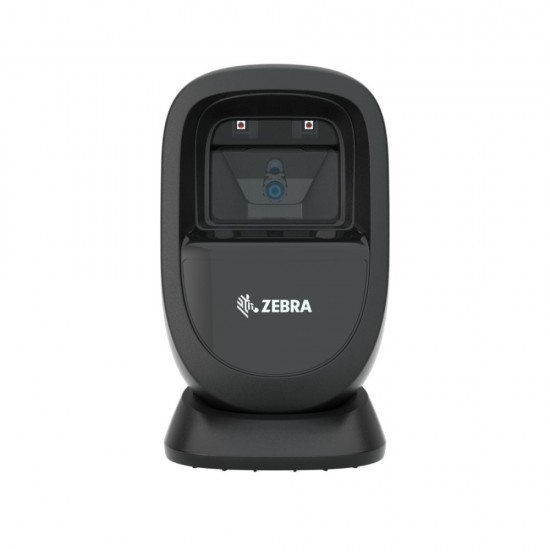

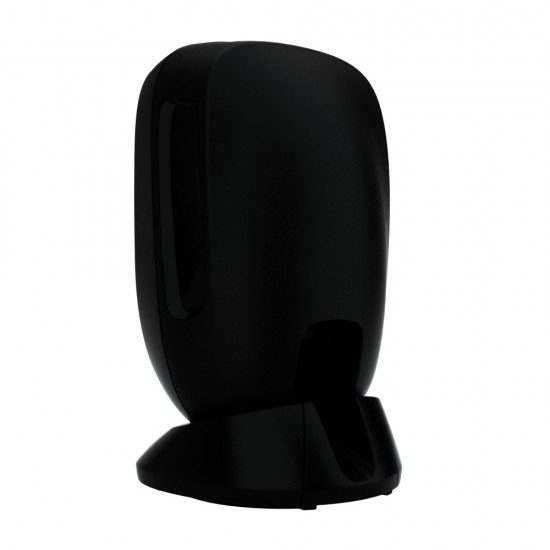

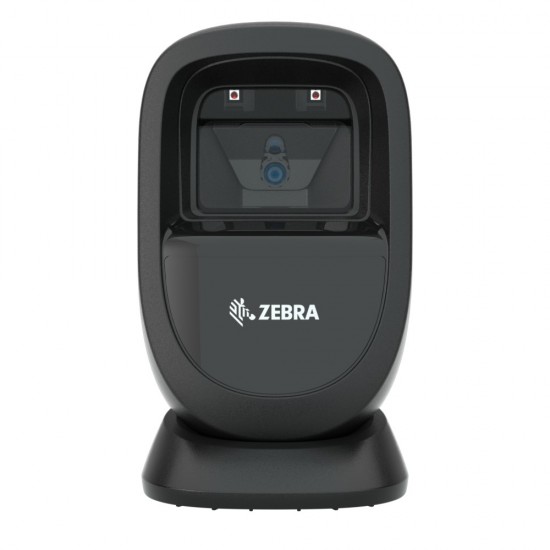

Scanner Zebra DS9308 2D, SR,  multi-IF, kit USB

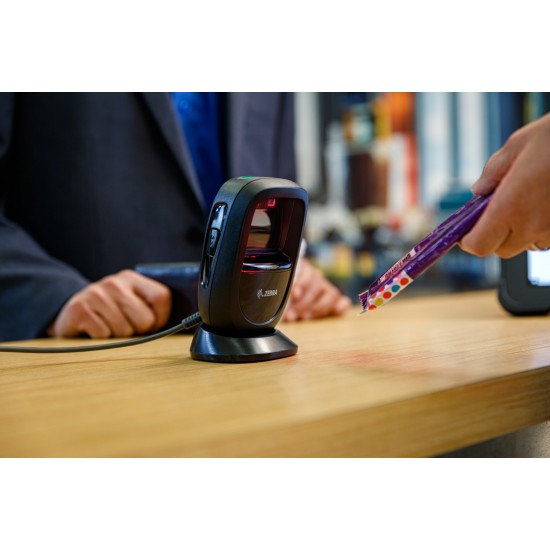

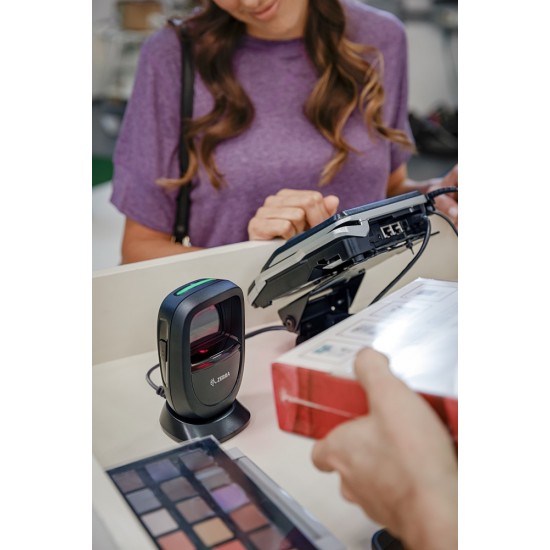

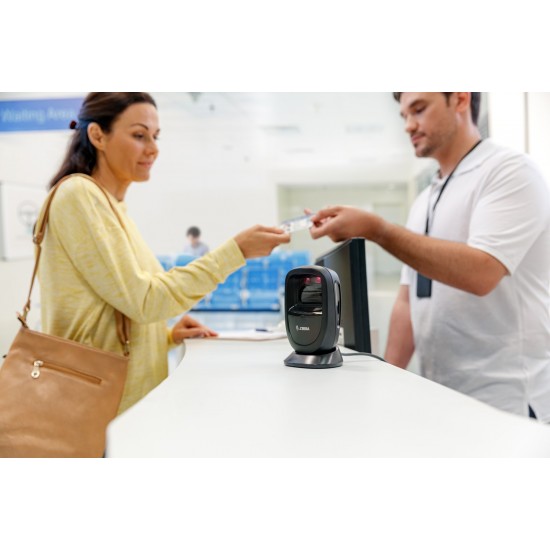

It is a small presentation scanner with big functionality. From convenience and drug stores to quick serve restaurants and other retail environments , counterspace is limited, bumps and spills may be an everyday occurrence, and the need for high customer satisfaction is always critical. DS9308 fits anywhere, scans everything, and is built for all-day reliability. Designed to withstand multiple drops at 5.0ft./1.5m to concrete. Scanning technology array imager, sealing IP52, decode capability of 1D, 2D, PDF417. Weight 318g.

Specifications

Scanners
Reading mode 1D and 2D array imager
Scanning range/ Βάθος πεδίου Skew Tolerance: +/-60°. Pitch Tolerance: +/-60°. Roll Tolerance: 360°.
Scanning range/ Width of Field 52° Horizontal x 33° Vertical
Scan Rate Ρυθμός σάρωσης 120 in./305 cm. per second for 13 mil UPC in optimized mode
Resolution Code 39: 3 mil; Code 128: 3 mil; Data Matrix: 5 mil; QR Code: 5 mil. Image Sensor 1280 x 800 pixels.
Interfaces USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485.
Dimensions 5.7 in. H x 3.4 in. W x 3.3 in. D 14.5 cm. H x 8.6 cm. W x 8.3 cm. D
Weight 318 g
Ambient light 107,700 Lux
Sealing IP52
Symbologies 1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma). 2D: PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, securPharm, DotCode, Dotted DataMatrix. OCR: OCR-A, OCR-B, MICR, US currency.
Additional features Operating Temp. 32° F to 122° F / 0° to 50° C. / Drop Specs Withstands multiple 5 ft./1.5 m drops to concrete. /Humidity 5% to 95% RH Electrostatic Discharge (ESD) ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV indirect.
