Downloads

File Size Download
z-9000 pos black.pdf 701.38KB Download

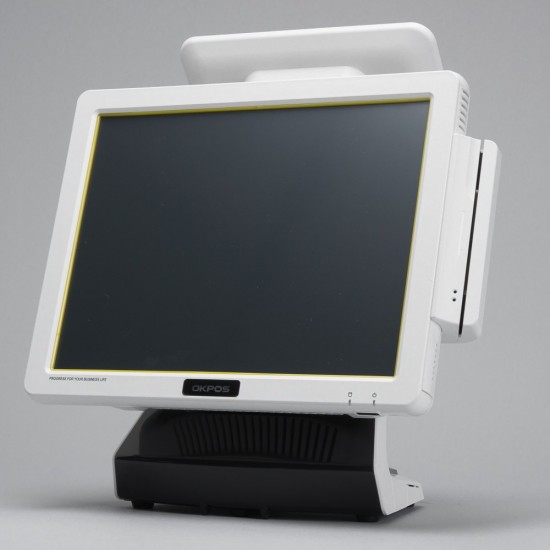

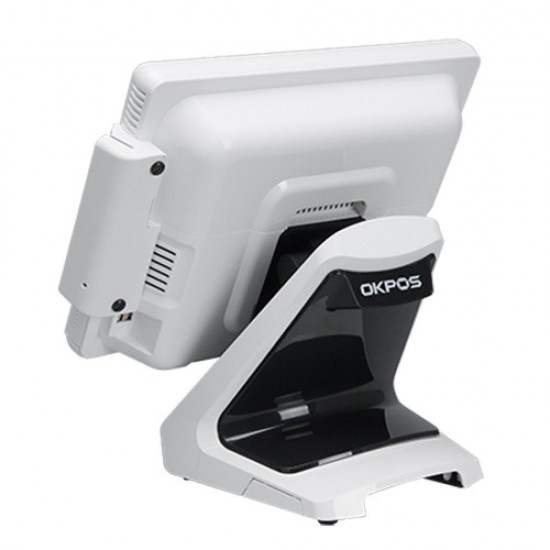

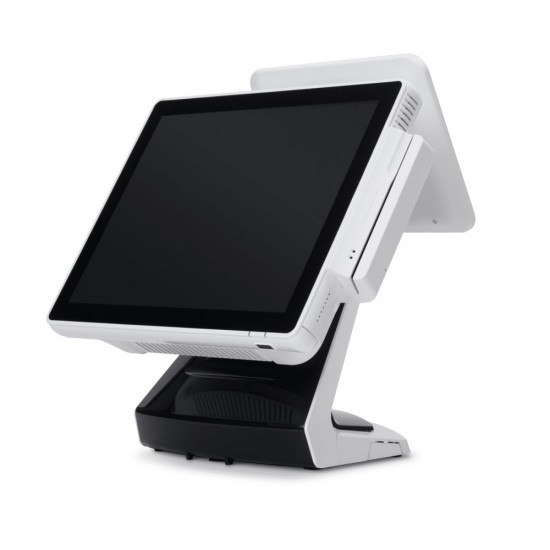

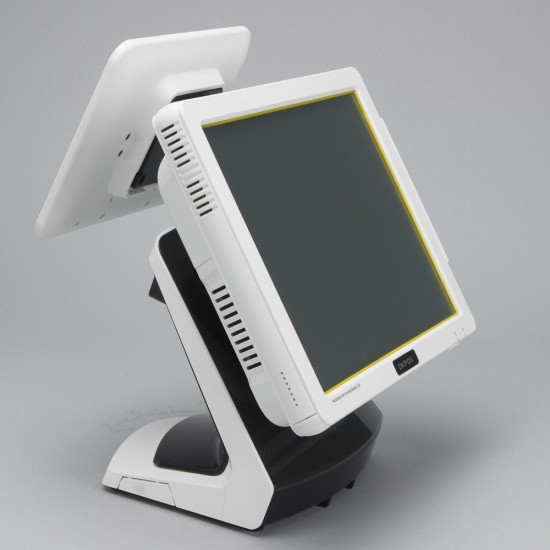

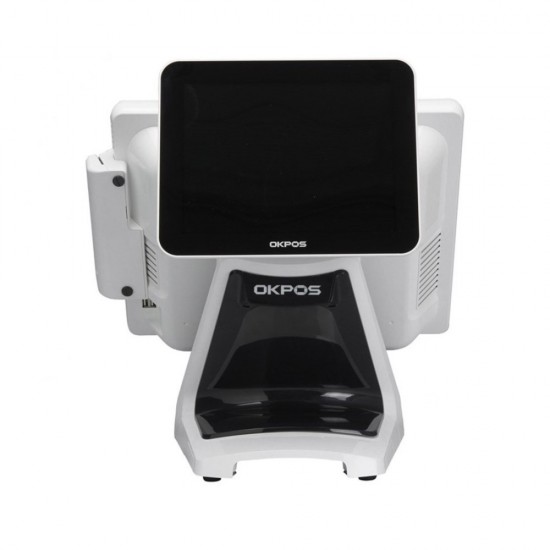

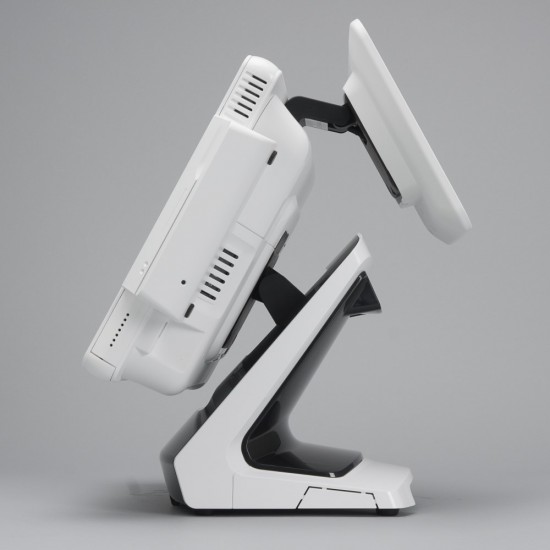

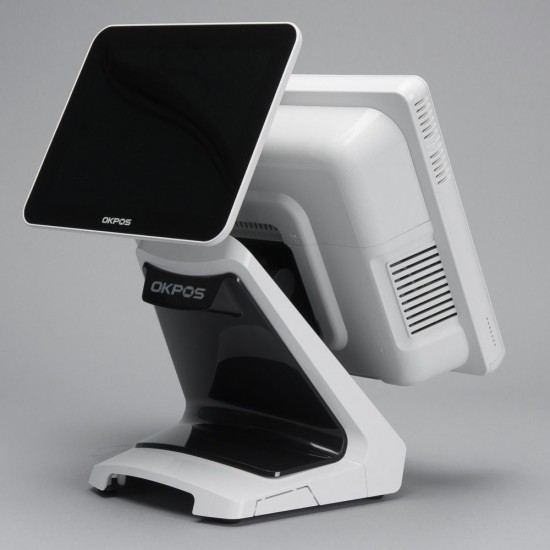

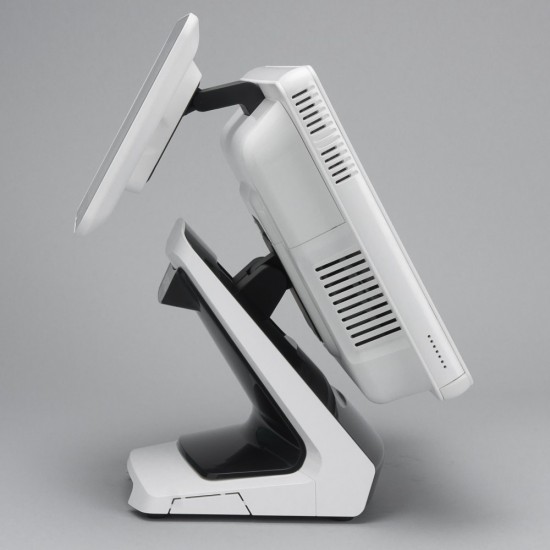

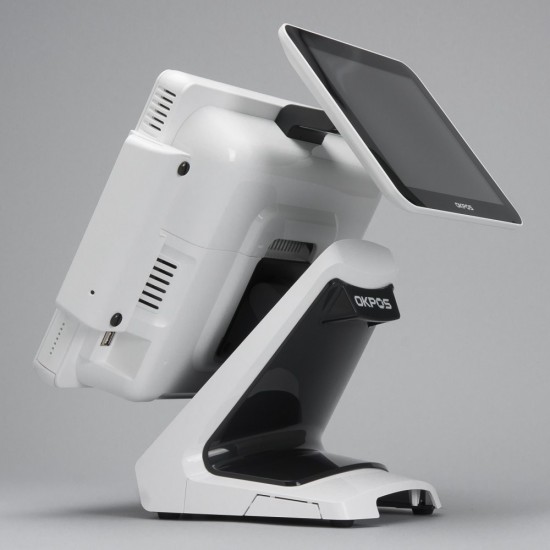

ICS Touch POS Z-9000

Industry’s Premier POS Solution for Retailers, Z-1500. Z-POS is an upgraded model of i-POS, which has streamlined slim yet robust as i series. If you are considering of using point-of-sale component at the outdoor shop or food section, Z-POS is highly recommended as its compact size with water and dust proof function. This is strong enough to be maximized for any environment where watery and dusty.Mass storage memory and storage device : DDR3 2GB, SATA320GB 2.5” (5400RPM). Eco friendly design with no noise and low heat. Reduced electricity power rate with 4W of ultra-low power consumption. LCD panel with water and dust proof function. Minimized board damage by applying separable power (AC adaptor). Soft curve and high-glossy exterior.


Specifications

Touch Systems
Monitor 15-inch TFT LCD (250cd), W / LED Back-light, LVDS Interface
CPU Intel Celeron J1900 (2M Cache, up to 2.42 GHz)
Memory DDR3 SODIMM 2GB (up to 4GB by 2 x Slots)
Disk 2.5" SATA-Ⅱ 320GB HDD & SSD(64GB/128GB)
Operating System POSReady2009 / POSReady7
Resolution 1024 x 768
USB Ports 6 x USB (Rear: 4 x USB, Side: 2 x USB)
Serial Ports 4 x RS-232C (3 x Powered DSUB-9, 1 x RJ-45)
Ethernet Ports 1 x Gigabit LAN
Additional Ports VGA: 1 x RGB/PS/2:1 x Keyboard, 1 x Mouse/ Speaker: 1 x 1W Optional:Cash Drawer Port: Serial trigger
Power supply External 60/72W Adapter/ Input AC 100~ 240V/50~60Hz, Output DC 12V/5A or 6A
Temperature/ Humidity Operating -25℃ to 65℃, Storage -35℃ to 75℃
Dimensions/ Weight 389 x 206 x 322 mm (W x D x H)/ 6.25kg
Additional features Touch Touch Systems Touch: 15-inch TFT LCD (1024 x 768), W / LED Back-light (Touch or Non-Touch)- 9.7-inch TFT LCD (1024 x 768), W / LED Back-light (Touch or Non-Touch) , Serial interface/ MSR: ISO 1,2,3 Tracks Reading/ SCR: EMV level 1, 2/ Optional Peripherals: 2nd Display: 15-inch TFT LCD (1024 x 768), W / LED Back-light (Touch or Non-Touch), 9.7-inch TFT LCD (1024 x 768), W / LED Back-light (Touch or Non-Touch)/ CDP: VFD (20 columns x 2 lines)/
