W-POS 18,5'' Touch POS black

Name: W-POS 18,5'' Touch POS black
Brand: OKPOS
Price: 1.00 EUR
Availability: InStock

W-POS 18,5'' Touch POS black

Downloads

File	Size	Download
W-POS (1).pdf	553.33KB	Download

Description

W-POS 18,5'' Touch POS black

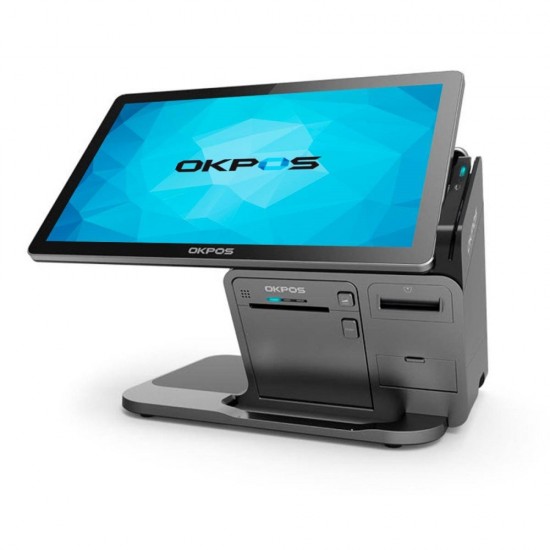

W-POS is a first Wide Screen type POS system with 15.6” and 18.5” size display adapted for the user system choice. The 1366x768 resolution is for the compatibility with 1024x768 type normal POS system, and support high-performance i3. Integrated Printer is optional, that is modular type designed for easy installation. Space-saving. User Convenient Front IC Card Reader. Bright and clear wide screen display. Adapted PCAP Multi Touch Screen.

OKPOS

Specifications

Touch Systems
Monitor	LCD:18.5" TFT LCD (250cd), LVDS Interface/ Touch: 15.6" (Capacitive 10Point Multi Touch)
CPU	Intel Core i3 (Skylake)
Memory	DDR4 4GB (up to 8GB, 1 slot)
Disk	2.5" SATA-Ⅱ 64GB SSD up to 128 GB SSD
Operating System	Window POSReady7, Windows 10 IoT Entry
Resolution	1366 x 768 (16:9)

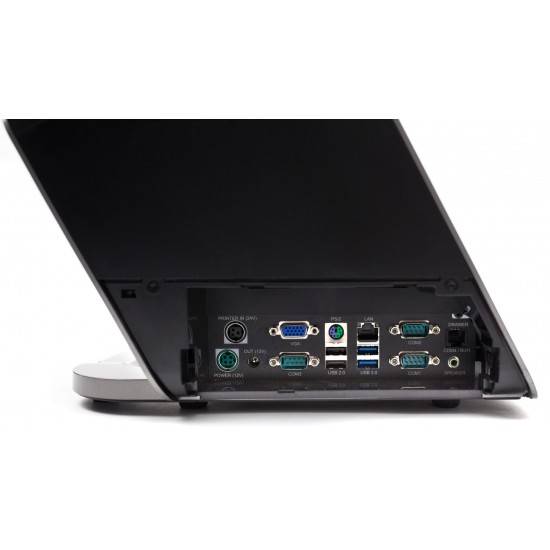

USB Ports	6 x USB. Side: 4 x USB (2x USB 2.0, 2 x USB 3.0). Front: 2 x USB 2.0.
Serial Ports	4 x RS-232C (3 x Powered DSUB-9, 1 x RJ-11)/ COM1/4: 0/5/12V by Jumper, COM2/3: 0/5/12V by BIOS select
Ethernet Ports	1 x Gigabit LAN port
Additional Ports	PS/2: 1 x Keyboard or Mouse/ Speaker: 1 x 1W/ VGA:1 x VGA port/ Audio:1 ports (1 x Line-out).
Power supply	External 60W Adapter/ Input AC 100~240V/50~60Hz, Output DC 12V/5A
Temperature/ Humidity	Operating 0℃ to 60℃, Storage -20℃ to 80℃
Dimensions/ Weight	406.5 x 319.6 x 310.3 mm (W x D x H) / 9.3kg
Additional features Touch Touch Systems	Optional Peripherals: MSR: 1,2,3 Tracks Reading/ Dual Display: 9.7" TFT LCD (1024 x 768)/ CPU: VFD (20 columns x 2 lines). 3 inch Built-in Printer optional.
