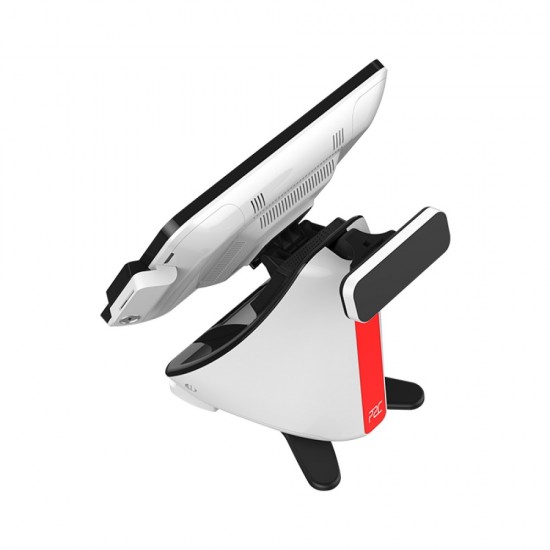

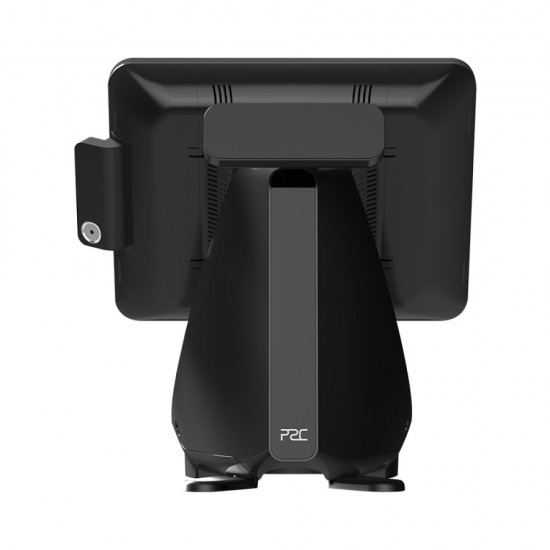

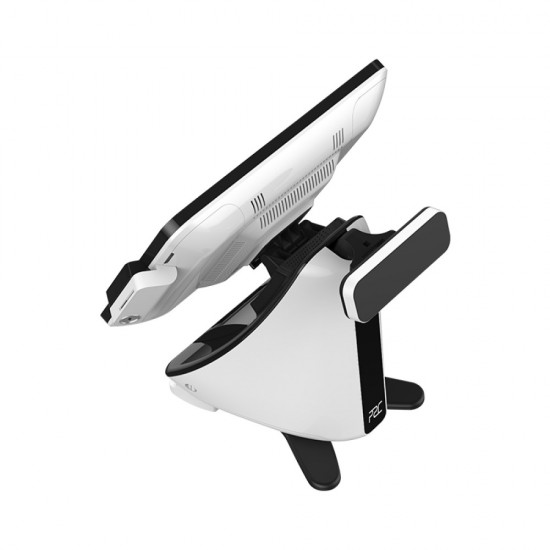

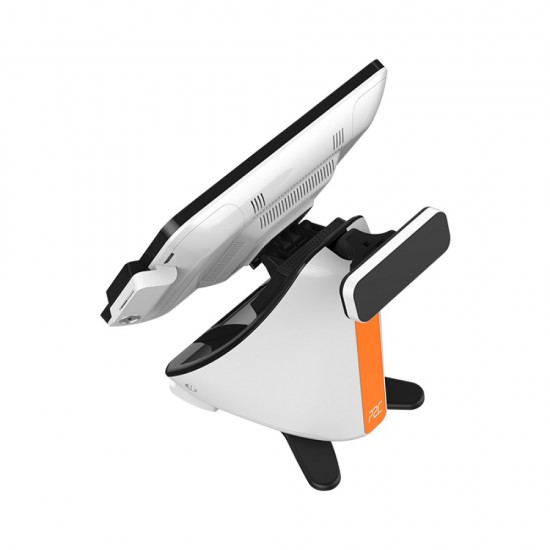

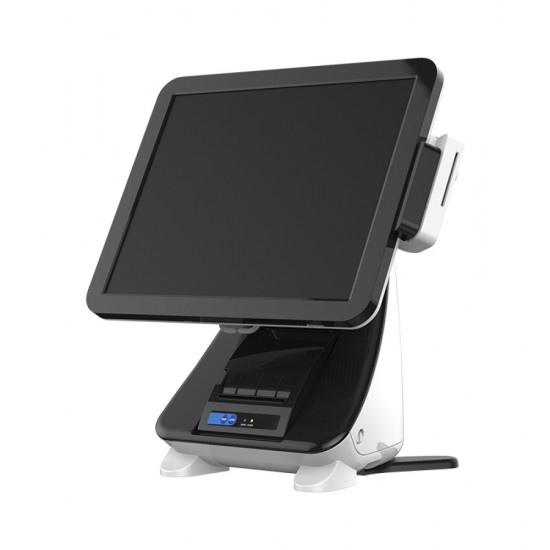

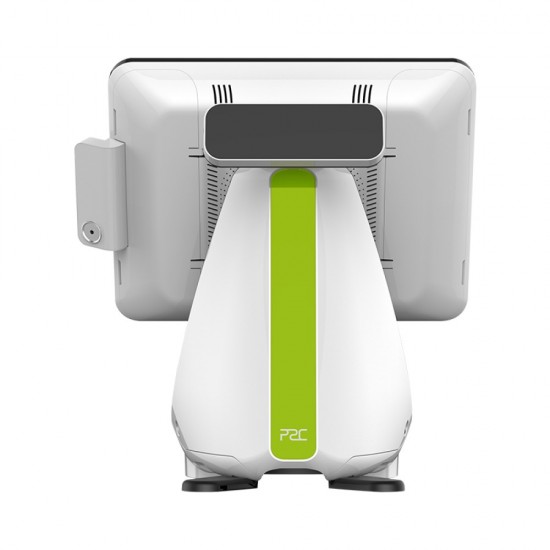

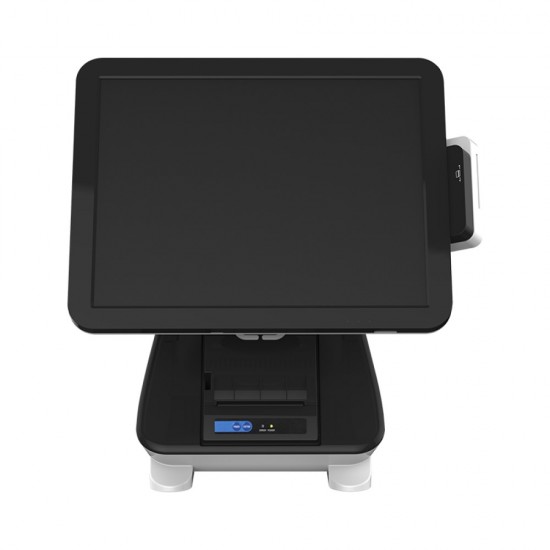

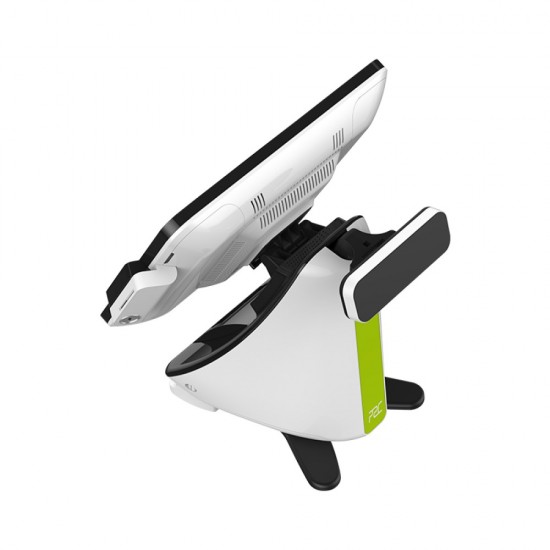

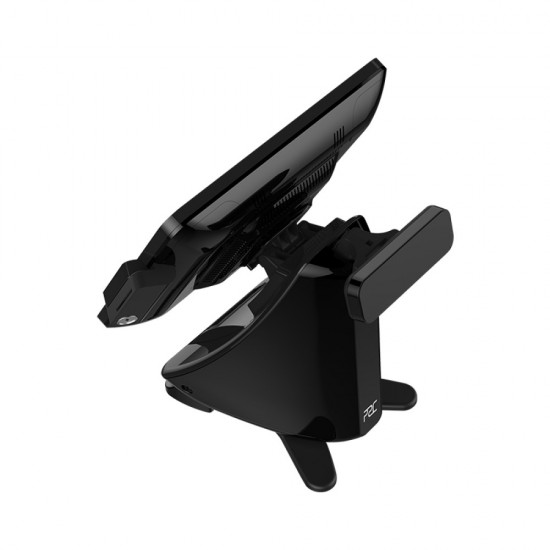

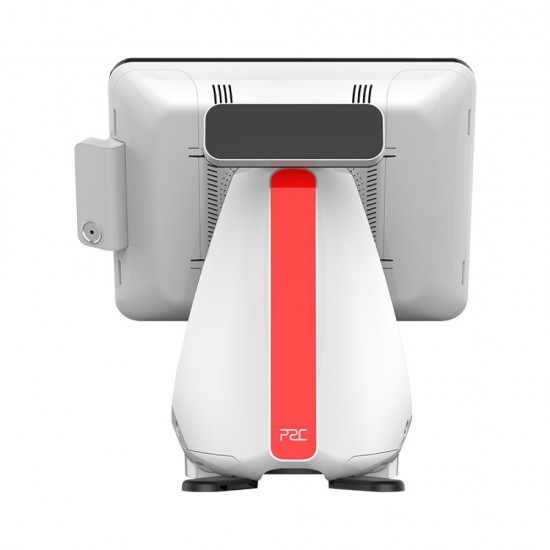

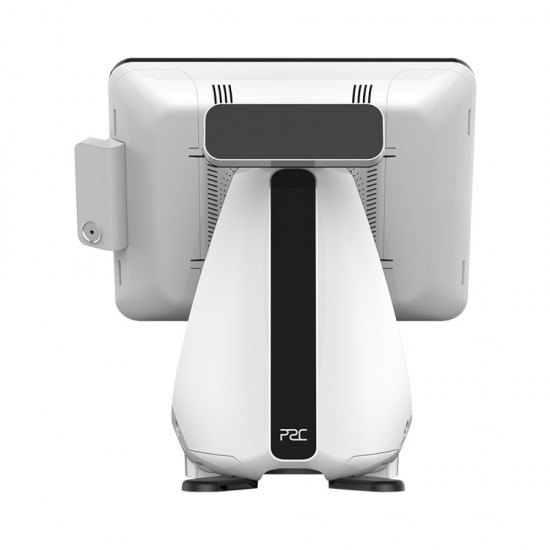

Touch POS P2C-P150

Multi-Simple POS System P2C-P150 Series. All-in-One POS with Internal Printer! Low heat, near-silent, fanless method implemented! Applied secured module to protect private information.(EMV Certified). Multi-Simple POS System. P2C 150 Series! Simple design with built-in printer to save space and easily maintain. Change the body color for your store theme. CPU: Intel Core™ i3,i5,i7 (3rd generation).



Specifications

Touch Systems
Monitor 15” TFT LCD with 5-wired Resistive Touch
CPU Intel Core™ i3-3220S Processor (3M Cache, 3.30 GHz)/ Intel Core™ i5-3550S Processor (6M Cache, up to 3.30 GHz)
Memory 2GB up to 8GB RAM
HDD 2.5" SATA-III SSD 64GB (default) or HDD 320GB (optional)
Operating System Windows 7, Windows 10, Linux
Resolution 1024 x 768
USB Ports 4 x USB 2.0, 2 x USB 3.0, 1 x mini USB type AB port
Serial Ports 2 x DB9(powered on pin 9)-Power Selectable by BIOS(0V, +5V, +12V), 1 x DB9(Can be used for DVR, optional)/ 1 x RJ50 (Powered on pin 10)-Dedicated +5V
Ethernet Ports 1 x 10/100/1000Mbps Base T Ethernet
Additional Ports Display Port: D-SUB 15 pins Analog VGA/ Expansion Slot: miniPCI-e/ Cash Drawer: 1 x RJ11 type (Support Epson & Star Cash Drawer)/ Audio Ports /Speaker Out: 1 X Mic-in, 1 X Audio-out / built-in 1watt Stereo Speaker.
Power supply DC12V-5A Adaptor, 96VAC~250VAC, 47Hz ~ 66Hz 60watt.
Temperature/ Humidity Operating: 0 ~ 50℃ at 10% to 90% humidity / 10~80% Humidity
Dimensions/ Weight 354 x 285 x 405 mm/ 6.2 Kg
Additional features Touch Touch Systems Chipset: Intel QM77 Express Chipset/Graphics: Intel HD Graphics 4000/ Touch: Normal Capacitive Touch (10 points multi touch)/ Options: 2nd Display/VFD(CDP)/ MSR (Magnetic Stripe Reader)/ SCR(Smart Card Reader)/ Dallas Reader (i-Button).
