15E1 ELO Touch POS

15E1 ELO Touch POS

Downloads

File	Size	Download
All_in_One_ELO_Touch_15E1_-_Espec.pdf	353.86KB	Download

Description

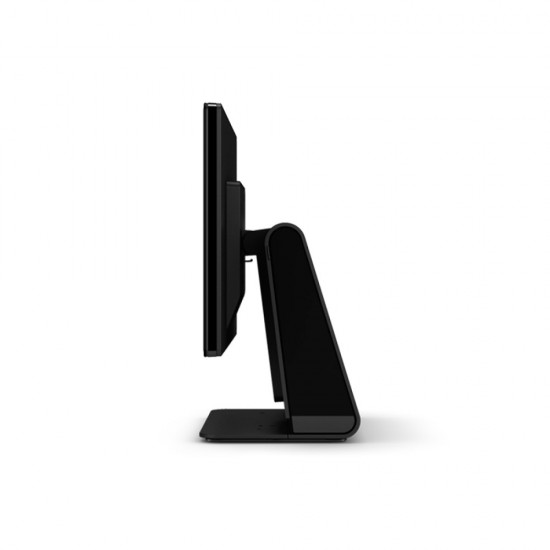

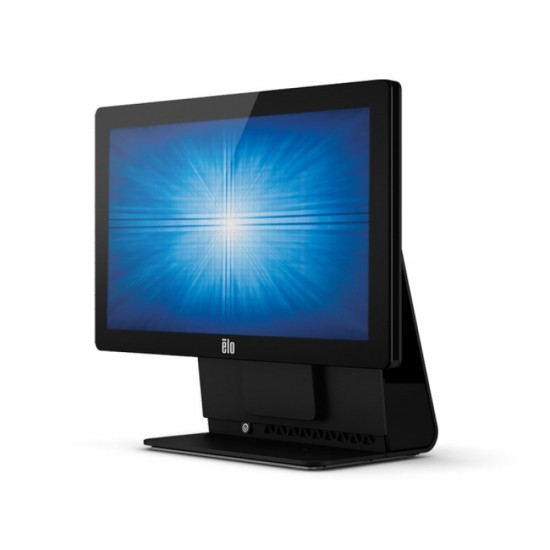

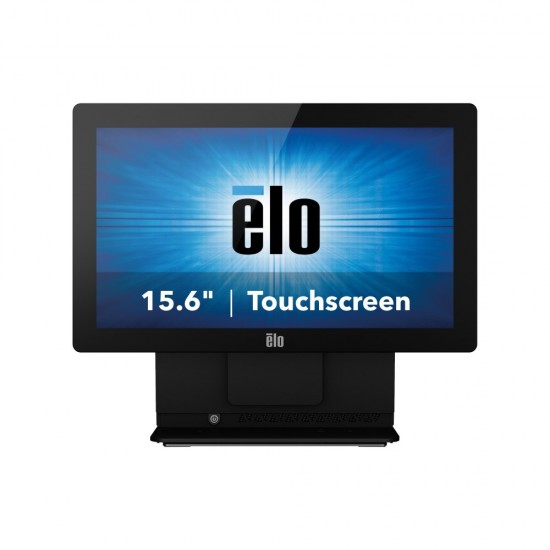

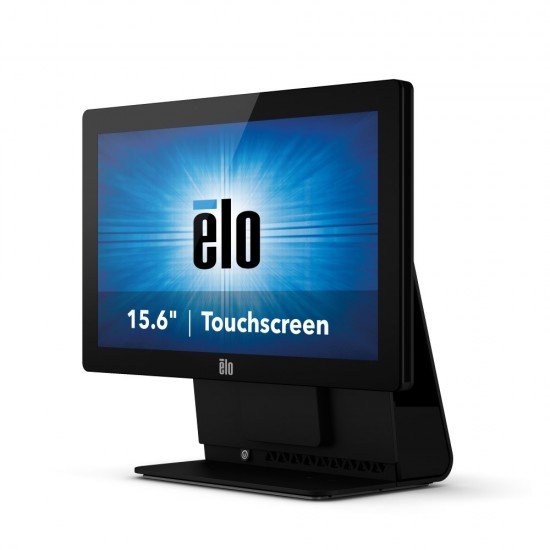

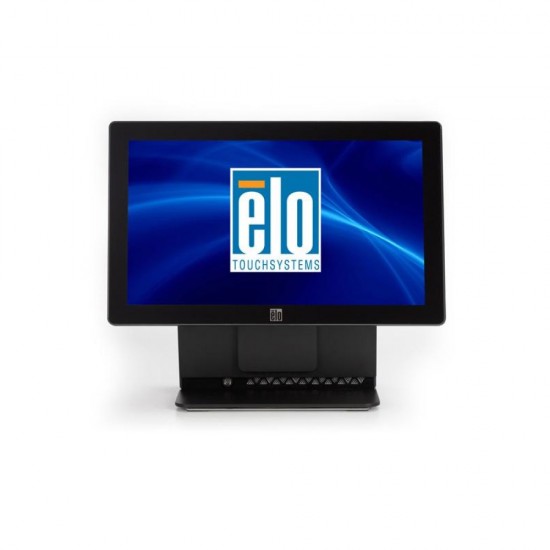

Touch POS ELO 15E1

Rigorously tested and backed by a three-year warranty, the E-Series delivers superior quality and reliability. The fan-less cooling design promotes a noise-free, dust-free and particulate-free operation, allowing you to maximize uptime and performance. Small footprint, retail-hardened, flexible touch computer, fast, accurate, and drift-free touch response using a finger, gloved hand, or soft stylus. Customer-installable peripherals. Quiet fan-less design.

ELO

Specifications

Touch Systems
Monitor	15.6"
CPU	Intel 1.66GHz Atom N270, 512K L2 Cache, 533MHz System Bus
Memory	2GB DDR2 SODIMM on 1 of 1 slot
Disk	160GB 2.5" SATA HDD2
Operating System	No OS. Supports Windows XP, Windows 7
Resolution	1366 x 768 @ 60Hz
USB Ports	4 x USB 2.0
Serial Ports	2 x Native DB9 RS-232 (standard)
Ethernet Ports	1 x LAN RJ45 (Gigabit)
Additional Ports	Additional Video Out: 2nd VGA out/ Audio Ports: 1 x 3.5mm line out,.
Power supply	External 12VDC universal-type power supply brick AC input voltage: 100-240VAC Input frequency: 50-60Hz Maximum output power: 50W (Max draw: 57.5W)
Temperature/ Humidity	Operating Temperature: 0°C to 35°C / 32°F to 95°F/ Storage Temperature: -20°C to 60°C / -4°F to 140°F. Humidity: Operating: 20% to 80%. Storage: 5% to 95%
Dimensions/ Weight	Max Touchcomputer Dimensions With Stand: 15.4" x 13.0" x 6.3" / 390mm x 330mm x 161mm. Max Touchcomputer Dimensions Without Stand: 15.4" x 11.0" x 9.5" / 390mm x 280mm x 240mm. Weight (with stand): 9.9lbs / 4.5kg.
