2201L ELO Touch Monitor

Downloads

File	Size	Download
ELO 22011l-brochure_2201l.pdf	919.02KB	Download
ELO-2201L-DS-18041AES00071.pdf	242.58KB	Download

Description

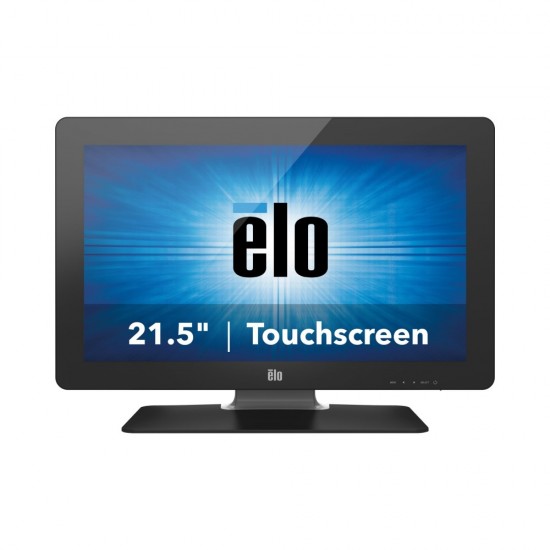

Touch Monitor ELO 2201L

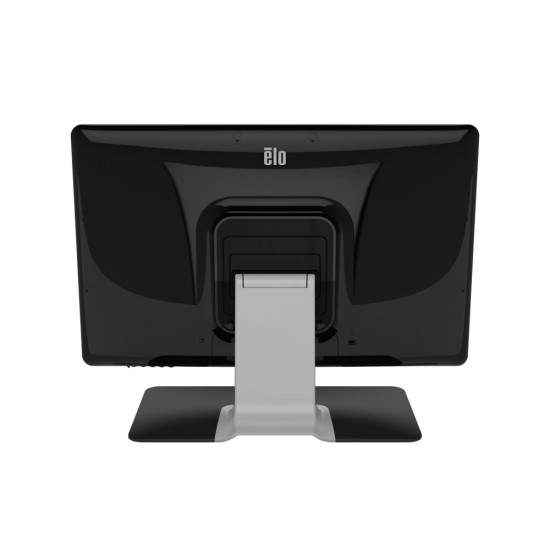

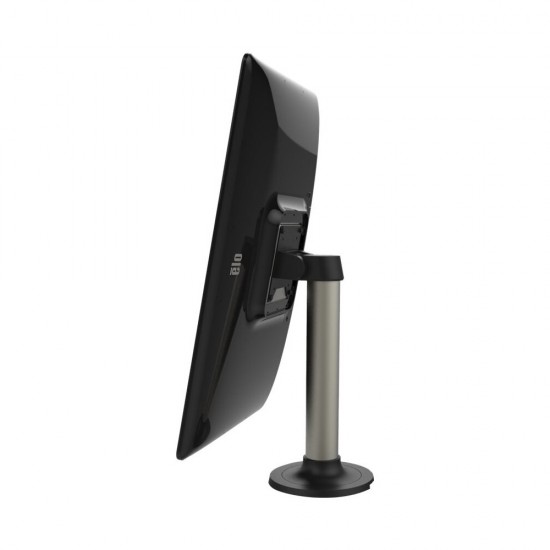

High definition LED display offers ultimate HD interactivity, clarity and resolution, 16:9 aspect ratio panel, 250 nits panel, USB touch controller, DVI, VGA and built-in speakers for a rich audio experience, LED backlighting allows for state-of-the-art slim design, while reducing power consumption. Removable base and mounting features, including a VESA mount as well as wall- and arm-mounting options for installation flexibility in almost any architectural configuration. Ruggedized for use in high-traffic environments. Three-year warranty. Projected Capacitive multitouch (4 touch points – HID).

ELO

Specifications

Monitors
Monitor specifications	21.5"/ Number of Colors 16.7 million
Monitor Technology	Active matrix TFT LCD with LED backlighting/ Single-touch, dual-touch and multi-touch
Brightness	LCD Panel: 250 nits; with IntelliTouch Dual Touch: 225 nits; with IntelliTouch ZB: 225 nits; with PCAP: 225 nits
Resolution monitor	1920 x 1080/ Other Supported Resolutions 640x480 60Hz; 720x576 50Hz; 800x600 56, 60Hz; 1024x768 60Hz; 1280x720 50, 60Hz; 1280x960 60Hz; 1280x1024 60Hz; 1366x768 60Hz; 1440x900 60Hz; 1680x1050 60Hz; 1920x1080 50, 60Hz
Display area	18.8" x 10.6" (476mm x 268mm)
Aspect Ratio	16:9
Interface	VGA, USB,
USB Ports	USB,
VGA Ports	VGA
Power monitor	Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)/ Monitor input power signal specifications: 12VDC +/- 5%/ DC (external power adapter included with unit, P/N: E005277) Adapter input connector: IEC 60320 C6/ Adapter input voltage range: 100-240VAC, 50/60Hz/ Power Consumption (monitor + adapter, typical): ON: 26.04W, SLEEP: 0.83W, OFF: 0.67W
Temperature/ Humidity	Operating: 32°F to 104°F (0°C to 40°C); Storage: (-4°F to 140°F) -20°C to 60°C/ Humidity (non-condensing) Operating: 20%-80%; Storage: 10%-95%
Dimensions /weight	21.7" x 7.6" x 15.4" (551mm x 193mm x 392mm) max/ Unpackaged: 16.5lbs (7.5kg);
Additional features - Monitor	Response Time – Total (typical) 14 msec Viewing Angle (typical) Horizontal: ±89° or 178° total; Vertical: ±89° or 178° total Contrast Ratio (typical) 1000:1 Video Analog VGA on Female DB-15 connector; Digital DVI on Female DVI-D connector; Input Video Horizontal Sync frequency range: 31.5-80KHz; Input Video Vertical Sync (frame rate) frequency range: 50-75Hz/ MTBF 50,000 hours demonstrated/ Optional Peripherals: Magnetic Stripe Reader, Webcam
