Gryphon GFS 4520 2D Scanner

Name: Gryphon GFS 4520 2D Scanner
Brand: DATALOGIC
Price: 1.00 EUR
Availability: InStock

Gryphon GFS 4520 2D Scanner

Downloads

File	Size	Download
Gryphon_4500_fixed_series_EN.pdf	434.48KB	Download

Description
Video

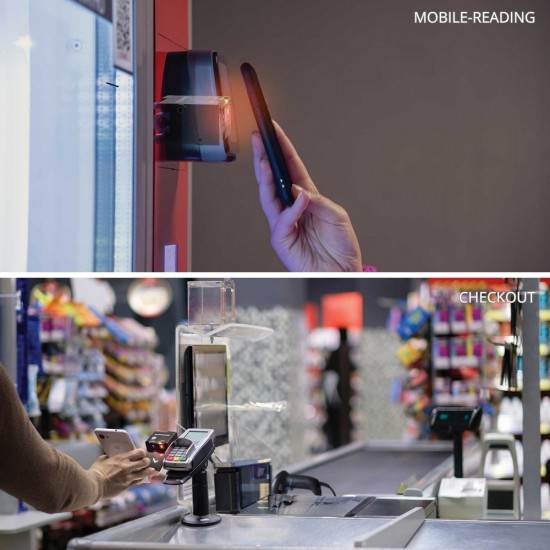

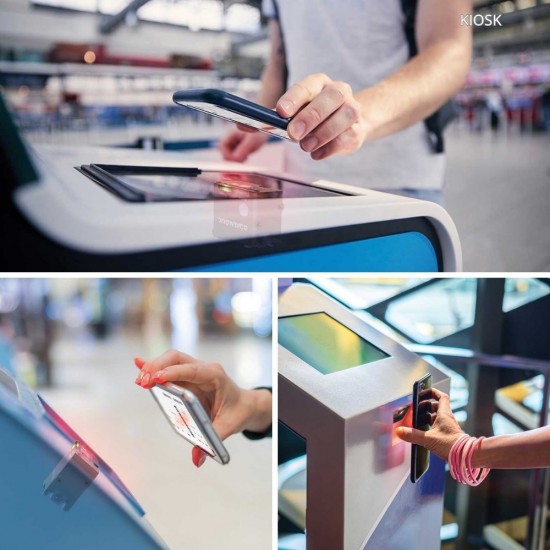

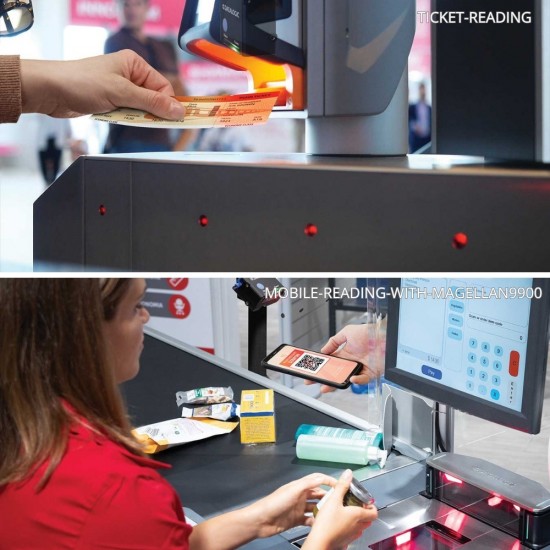

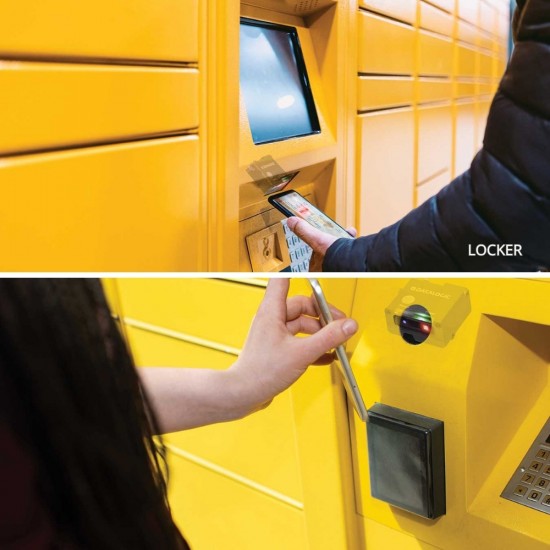

Datalogic Gryphon GFS 4520 2D Scanner for Kiosks, Lockers, Self Service, Shelf Check out systems

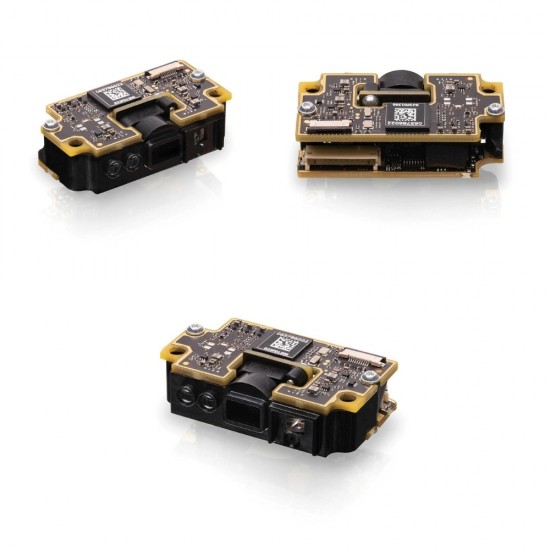

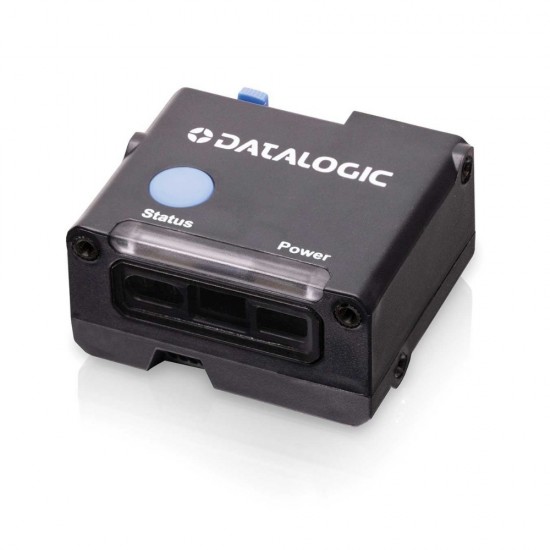

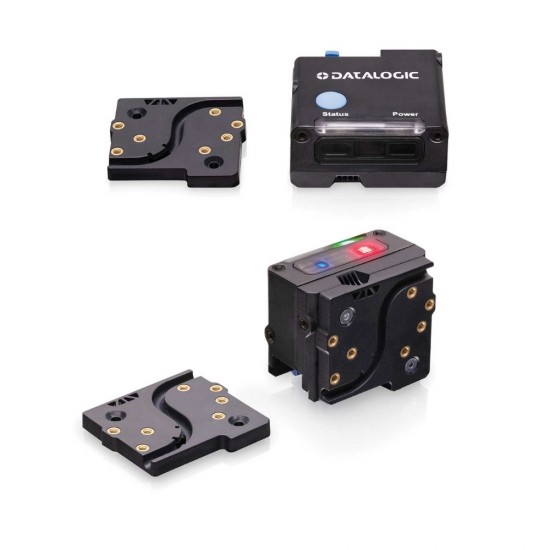

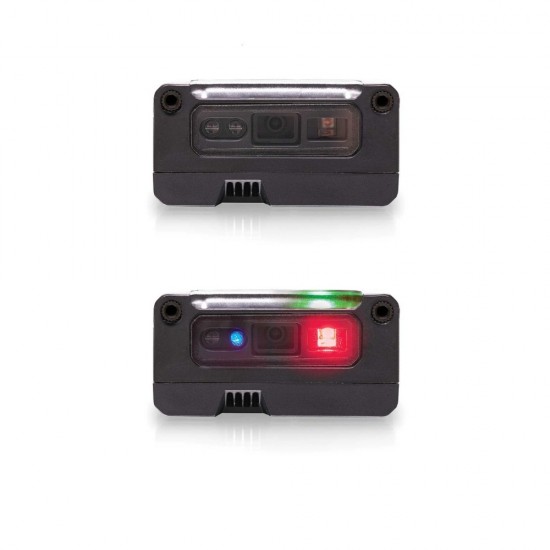

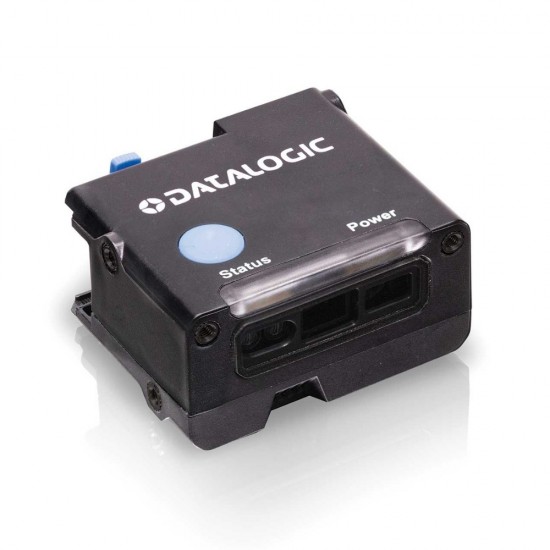

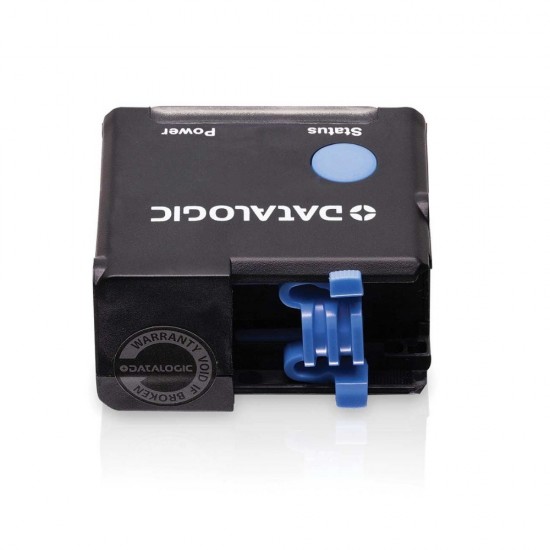

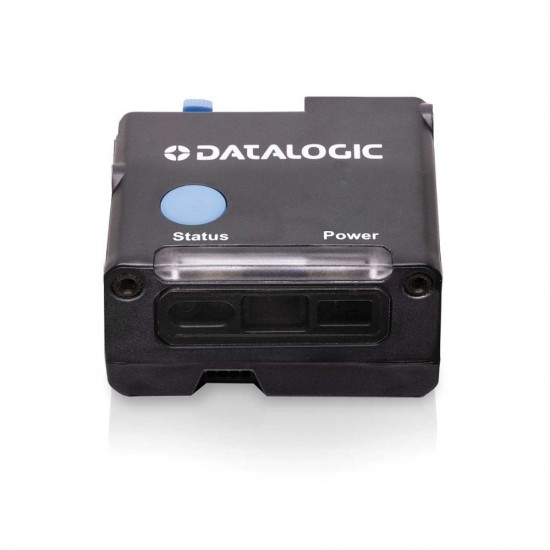

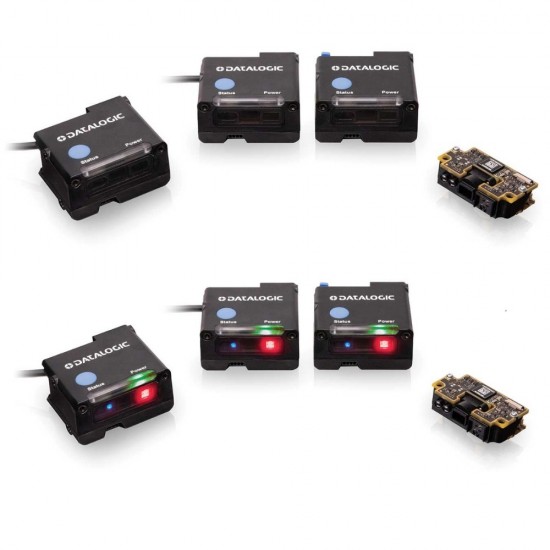

Extremely small and durable scan module, ideal for integration into kiosks and self-service machines. It features an advanced sensor and wide-angle optics, offering instant reading of linear (1D) and two-dimensional (2D) codes, even from mobile phone screens. Fast scanning without delays, with Blue Dot LED targeting technology and Datalogic's Green Spot for immediate confirmation of correct reading. This specific GFS4520 version operates on 5 VDC and connects exclusively via a USB port (micro-USB). In fact, it includes a special locking clip to prevent accidental disconnection of the cable. With IP54 certification for water/dust resistance, UV protection and resistance to drops from 1.5 meters, it is designed for indoor or outdoor use, offering top reliability backed by a 5-year factory warranty.

DATALOGIC

Specifications

Scanners
Reading mode	1D / Linear Codes. 2D Codes. Postal Codes. Stacked Codes. Digital Watermarking.
Scanning range/ Βάθος πεδίου	Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent. Code 39: 5 mil: 4 to 30.0 cm / 0.16 to 11.8 in. Code 39: 10 mil: 1.7 to 53.5 cm / 0.6 to 21.0 in. Data Matrix: 10 mil: 3.5 to 23.5 cm / 1.3 to 9.6 in, Data Matrix: 15 mil: 3.0 to 35.0 cm / 1.2 to 13.7 in, EAN/UPC: 13 mil: 4.0 to 82.0 cm / 1.6 to 32.3 in, PDF417: 10 mil: 1.5 to 35.0 cm / 5.9 to 13.7 in. QR Code: 10 mil: 3.5 to 22.0 cm / 1.4 to 8.7 in.
Scanning range/ Width of Field	Pitch: +/- 60°; Roll (Tilt): 180°; Skew (Yaw): +/- 60°
Resolution	1D Linear: 0.076 mm / 3 mils. Data Matrix: 0.13 mm / 5 mils. PDF417: 0.13 mm / 5 mils

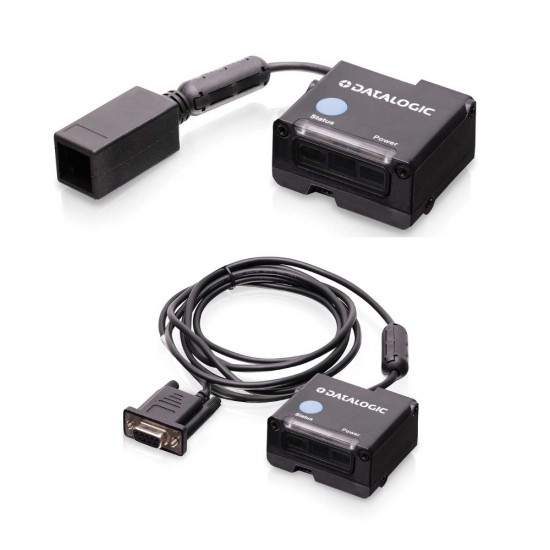

Interfaces	GFS4520: USB (micro-USB connector)
Dimensions	2.8 x 4.8 x 5.5 cm / 1.1 x 1.9 x 2.2 in
Weight	GFS4520: 52 gr / 1.8 oz (micro-USB connector)
Ambient light	0 – 120,000 lux
Sealing	IP54
Symbologies	1D / Linear Codes Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes. 2D Codes Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot Code; Dot Matrix Postal Codes Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC) Stacked Codes EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites Digital Watermarking Digimarc Barcodes
Additional features	DROP RESISTANCE Withstands repeated drops from 1.5m / 4.0 ft onto a concrete surface. Operating Temperature: -20 to 50 °C / -4 to 122 °F. Storage/ Transport: -40 to 70 °C / -4 to 158 °F.
