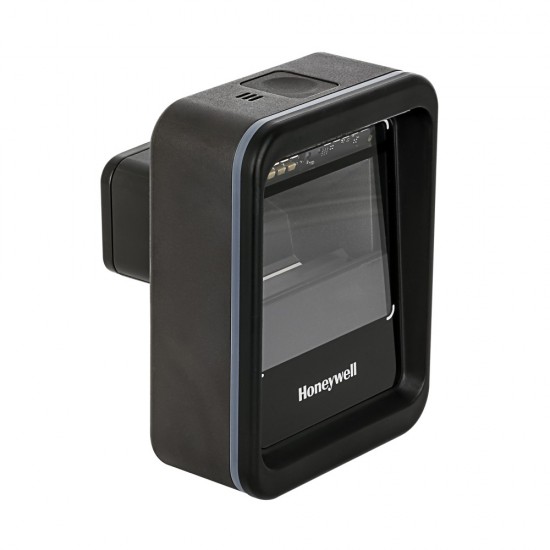

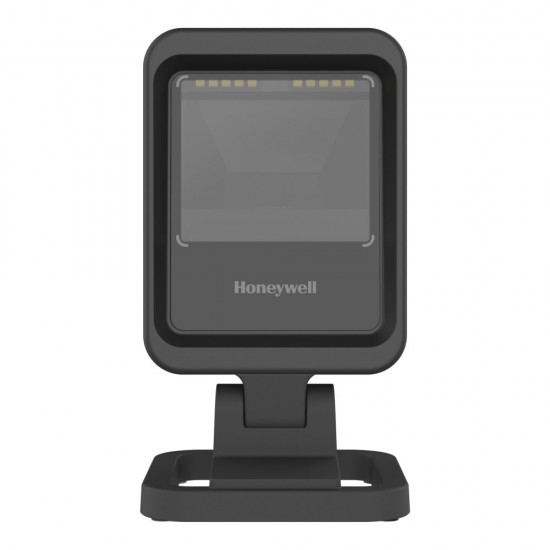

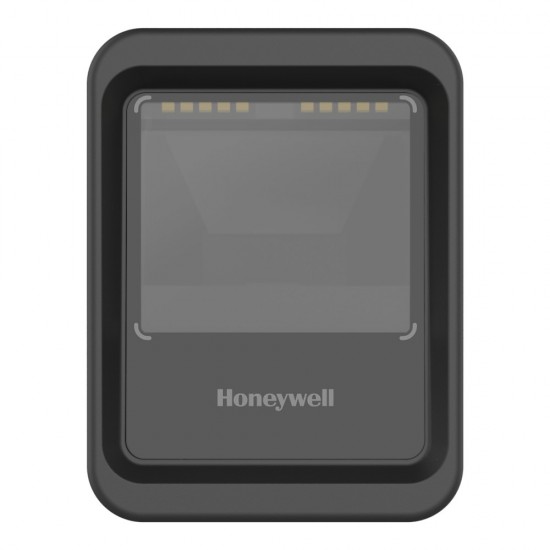

Honeywell Genesis XP 7680 1D/2D Digimarc

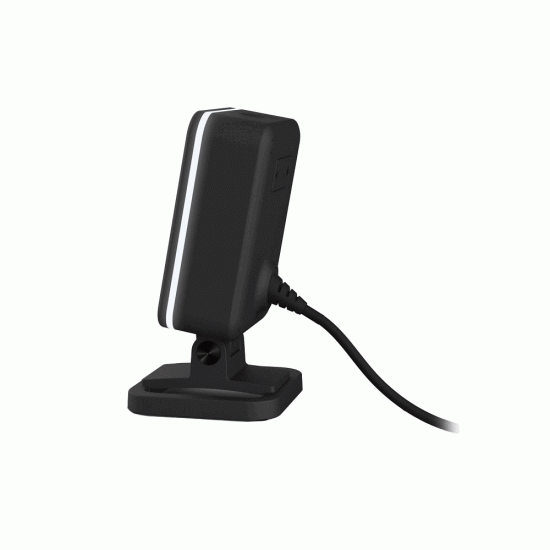

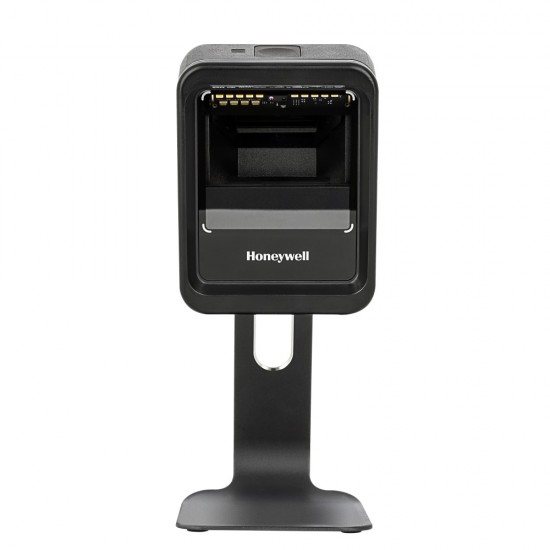

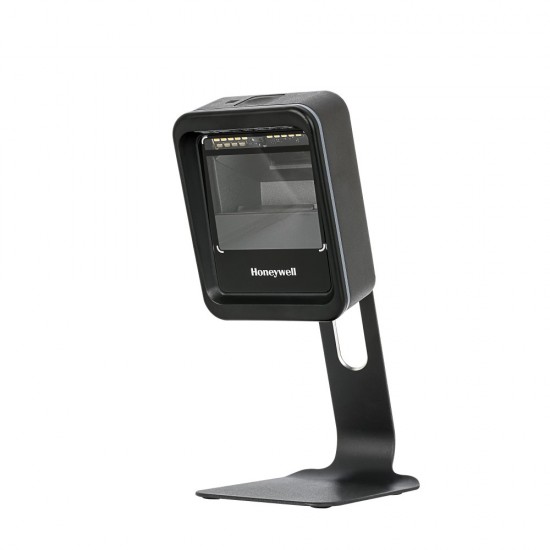

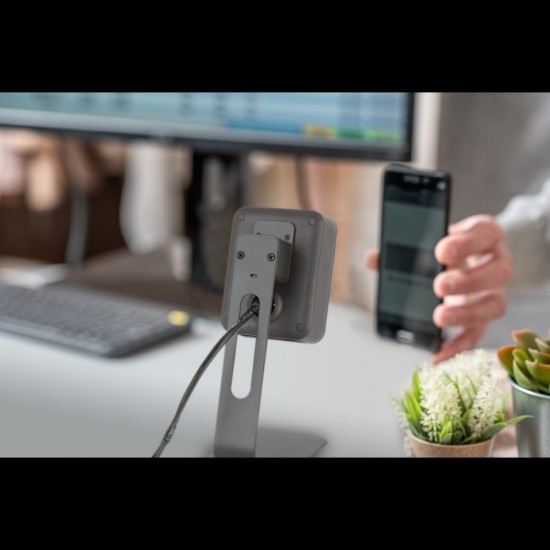

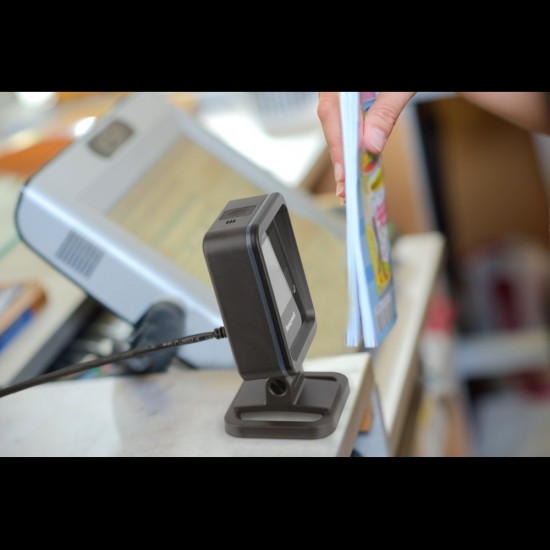

The Genesis XP was designed with flexibility in mind allowing it to easily adapt to the workflows of today and tomorrow. The removeable and adjustable compact stand and angled cable attachment point will allow the product

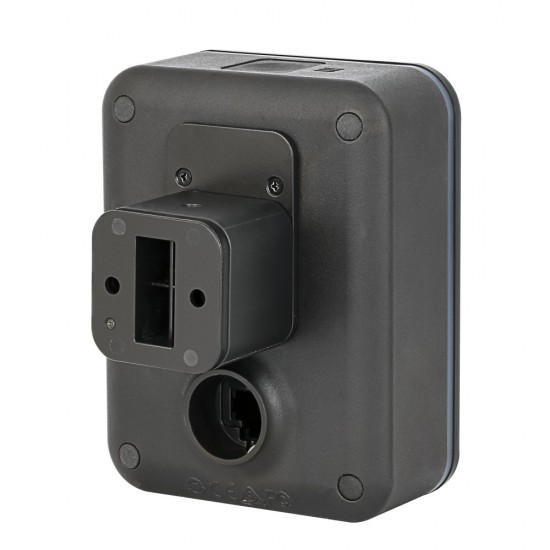

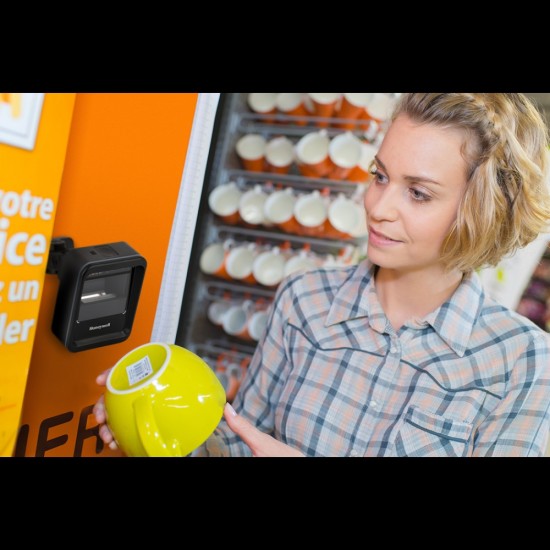

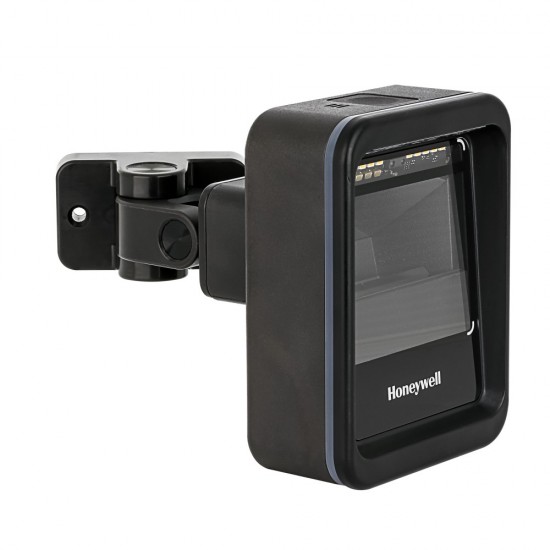

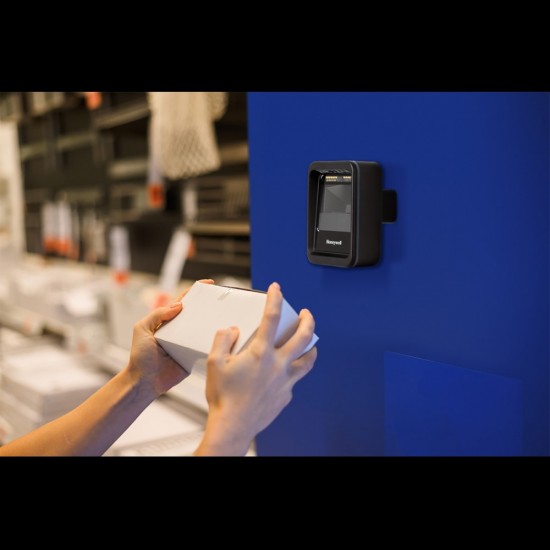

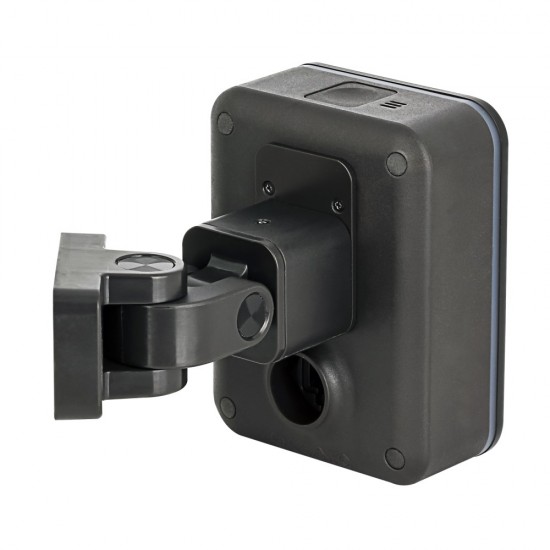

to be placed almost anywhere. A line of additional smart placement accessories is available for the Genesis XP supporting wall mount, POS mount and downward facing installations. The Genesis XP and smart placement
accessories are disinfectant-ready.

HONEYWELL HONEYWELL

Specifications

Scanners
Reading mode 1D, 2D, PDF, Dotcode, Digimarc Area Image 1,280 x 800 pixel array, 1Mp
Scanning range/ Βάθος πεδίου 0 mm – 98 mm (0 in – 3.9 in)/ 0 mm – 151 mm (0 in – 6.0 in)/ 0 mm – 129 mm (0 in – 5.1in)/ 0 mm – 250 mm (0 in – 9.9 in)/ 0 mm – 138 mm (0 in – 5.4 in)/ 0mm – 212 mm (0 in – 8.3 in)
Scanning range/ Width of Field 3.0 mil C39 (1D)/ 5.0 mil C39 (1D)/ 10 mil (DM)/ 13 mil UPC(1D)/ 6.7 mil (PDF)/ 20 mil (QR)
Resolution 1D: 3 mil (0.076 mm)/ 2D 5 mil (0.127 mm)
Interfaces USB, RS-232, Keyboard Wedge, IBM 46xx (RS-485) Auxiliary Ports: Pin Connector for future expandability
Dimensions 80 mm x 40 mm x 105 mm
Weight 340 g (12 oz)
Ambient light 100,000 Lux
Sealing IP52
Symbologies Reads standard 1D, 2D, PDF, 2D, Dotcode symbologies, Digimarc supported
Additional features Input Voltage: 5.0V DC/ Operating Power: 2.5 W (500 mA @ 5V)/ Operating Temperature: 0°C to 50°C (32°F to 122°F)/ Storage Temperature: -40°C to 70°C (-40°F to 158°F)/ Humidity: 0% to 95% relative humidity, non-condensing. Designed to withstand 50 drops at 1.5 m
