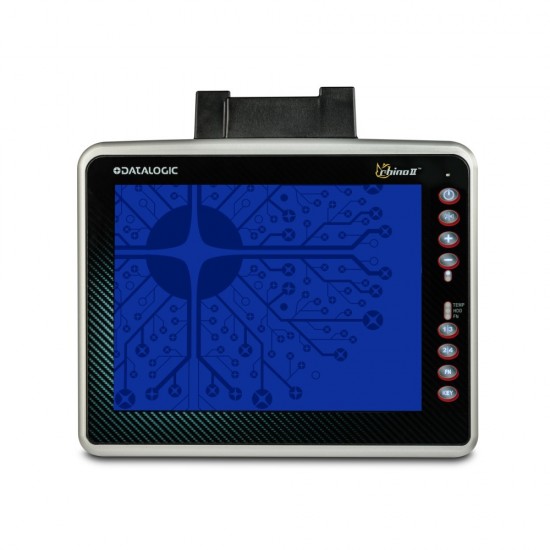

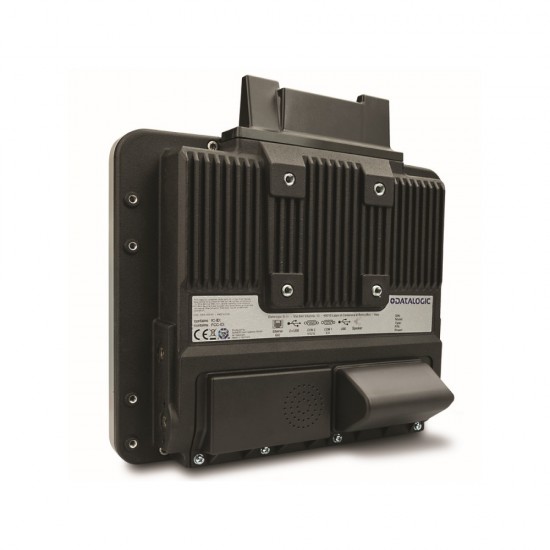

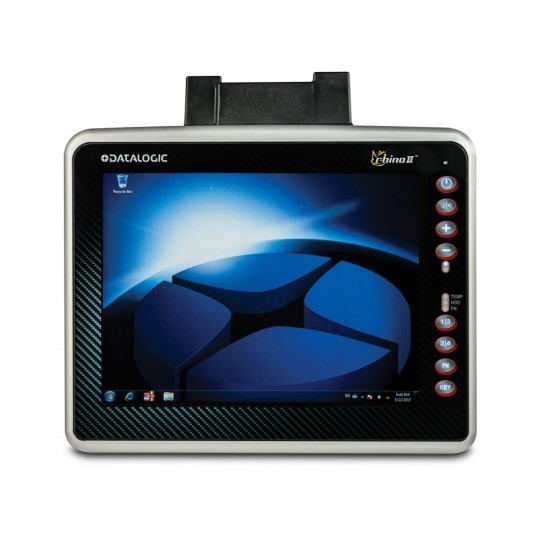

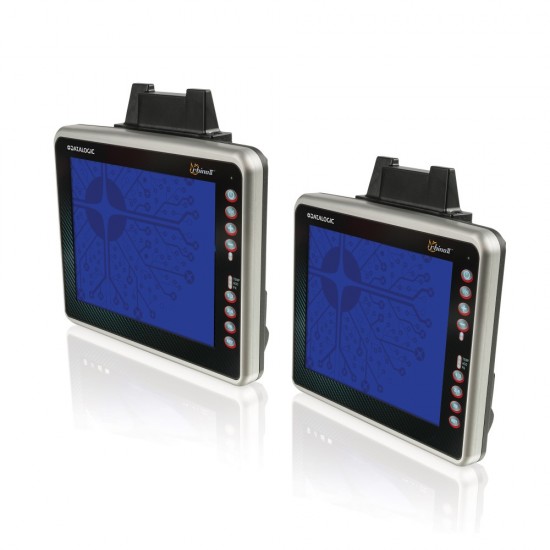

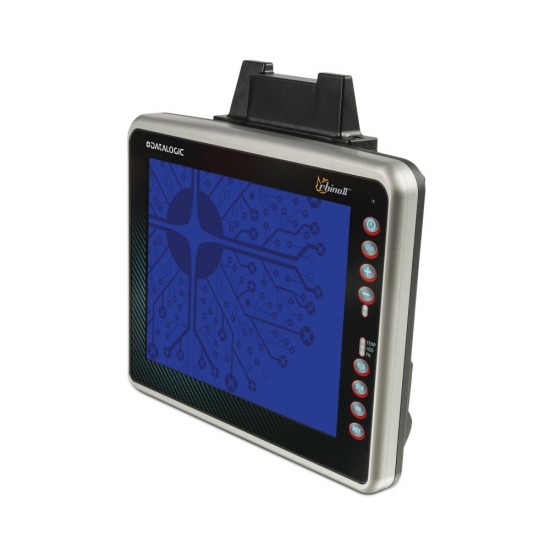

RHINO II Mobile Computer

Name: RHINO II Mobile Computer
Brand: DATALOGIC
Price: 1.00 EUR
Availability: InStock

RHINO II Mobile Computer

Downloads

File	Size	Download
DS-RHINO-II-ENA4-HR.pdf	1.86MB	Download

Description
Video

Mobile Computer Datalogic Warehouse Solution RHINO II

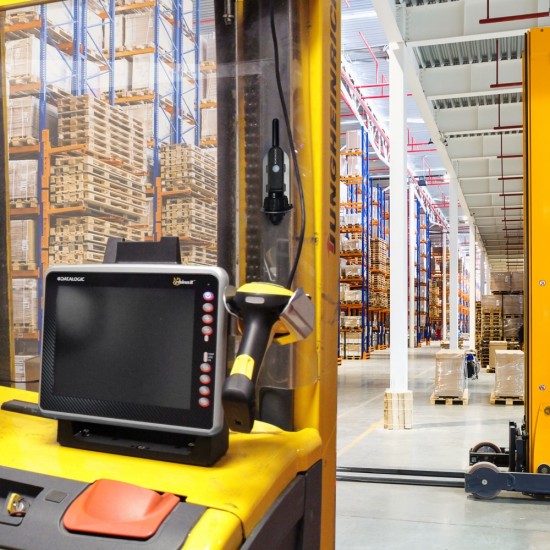

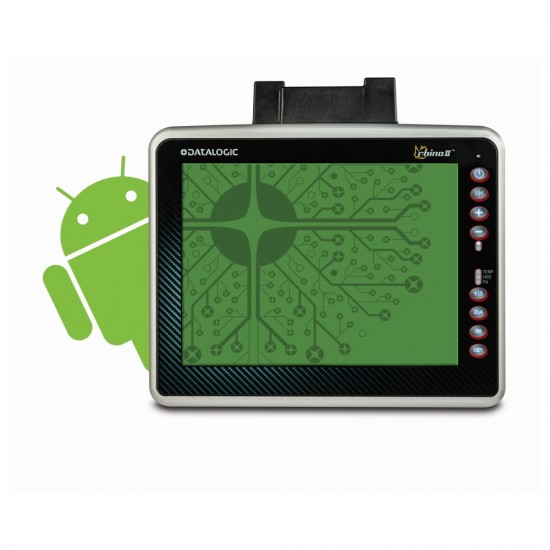

The Rhino II™ vehicle mount computers, available in both 10” and 12” display sizes, set the standard for ruggedness in the warehouse. A sealed design tested to IP65/IP67 ensures operation in the toughest environments. A dedicated freezer-rated model with integrated display heater allows use in and out of cold storage. The capacitive touch models feature 3 mm anti-glare armored glass, while still allowing use of gloves. Tailored for warehouse management, the Rhino vehicle mount computer increases productivity with its easy integration of PowerScan or other automated data collection devices. The Rhino II offers a wide choice of Operating Systems: Windows Embedded Compact 7 (WEC7), Windows Embedded Standard 7, Windows 10 IoT Enterprise and the new Android™ 7.1

DATALOGIC

Specifications

Mobile Terminals
Monitor pda	10'' or 12'' high resolution color display
Operation System	Choice of Microsoft Operating Systems or Android™ 7.1
CPU pda	Freescale NXP ARM Quad Core: 1 GHz (WEC7 Standard models/Android 7.1)/ 800 MHz (WEC7 Freezer models); Intel Atom E3826 Dual Core 1.46 GHz (Win7/10)
Memory pda	WEC7: 1 GB RAM; Win7/10: 4 GB RAM. Android 7.1: 2 GB RAM
Communication	Bluetooth® Wireless Technology 4.0/ Wi-Fi: 802.11 a/ b / g / n (2.4 GHz and 5 GHz)/ Cisco CCX v4/ Wired Ethernet: 1 x GbE, RJ-45 (bottom).
Interface-Ports	1 x Ethernet 10/100/1000 Mbps; RJ45/ USB: 2 x USB 2.0 Type A (bottom)/ 1 x USB 3.0 Type A (bottom) Win7/ 10 only/ 1 x USB 2.0 Type A (top)/ Serial: 2 x RS-232 (bottom)/ COM1: 5 V on pin 9/ COM2: 5/12 V on pin 9
Keyboard	4 programmable keys (S1-S4)
Sealing	IP65/ IP67
Resistance	Operating: -20 to 55 ºC / -4 to 131 ºF (without heater, Capacitive models)/ -30 to 55 ºC / -22 to 131 ºF. Humidity 10 to 90% at 40 ºC / 104 ºF non-condensing. Shock & Vibration Class 5M3 at EN 60721-3-5: 1998 (landcrafts)
Dimensions/ Weight pda	10'': 27.8 x 22.3 x 6.4 cm / 10.9 x 8.8 x 2.5 in/12'': 32.4 x 25.1 x 7.1 cm / 12.7 x 9.9 x 2.8 in./ 3.4Kg/ 3.6Kg / 4.7Kg
Software PDA	Windows Embedded Compact 7, Windows Embedded Standard 7 or Windows 10 IoT Enterprise 64 bit; Android 7.1 Nougat
Power supply mobile terminals	Choice of 12 VDC; 24/48 VDC isolated internal power supplies; Android models use 12-48 VDC. Optional backup battery for up to 30 min. 2,500 mAh @ 10.8 VDC, 27 Wh
Additional features mobile terminals	Certification Certified for CE/FCC; RoHS compliant. 1-Year Factory Warranty.
