| Monitor pda |
Indoor: 307 mm (12.1 in) XGA (1024 x 768) LED backlit display, 400 NIT, optional screen blanking/ Outdoor: 307 mm (12.1 in) XGA (1024 x 768) LED
backlit display, 900 NIT, optional screen blanking/
Touch Panel: Standard: Industrial touch panel with
resistive touch and support for finger touch and
standard stylus/ Multitouch: Optional industrial touch panel. |
| Operation System |
Microsoft Windows Embedded Compact 7 (WEC 7), Microsoft Windows Embedded Standard 7 (WES 7), Microsoft Windows 7 (Win 7), Microsoft Windows 10 IoT Enterprise (Win 10 Industry)/ Optional Software: RFTerm and ETE Terminal Emulators, Enterprise Browser, SOTI device management/ Honeywell SDK available for Windows Embedded Compact 7. |
| CPU pda |
1.5 GHz Dual Core Intel Atom E3826/ Graphics Processor: Intel HD Graphics Base Frequency 533 MHz, Burst Frequency 667 MHz. |
| Memory pda |
4 GB DDR3 System Software: Data Collection Engine for support of external scanners, Bluetooth® wireless technology configuration
utilities, Microsoft Internet Explorer, Microsoft
on-screen keyboard, Configuration Cloning Utility,
Screen Blanking, Zoom Zone, Launcher |
| Communication |
WWAN: Optional software-definable (data only)/
4G radio: LTE/UMTS/HSPA+/GSM/GPRS/EDGE/ EV-DO Rev A/1xRTT with data speeds up to 100 Mbps downlink and 50 Mbps uplink/ WLAN: 802.11 a/b/g/n Wi-Fi certified, CCX certified for data/ WLAN Security: Authentication: Support for a full range of 802.1X (EAP) types, including EAP-TLS, PEAP-MSCHAPv2, PEAP-GTC, LEA and EAP Fast Encryption; support for static, pre-shared, and dynamic encryption keys, 40-bit and 128-bit keys, WEP, WPA (TKIP), and WPA2 (AES) Encryption Methods/ WLAN Antennas: Dual internal antennas,
dual external remote and direct connect antenna accessories/ WPAN: WEC 7, WES 7, Win 7: Bluetooth 2.0+EDR standard, internal antenna/
Win 10 Industry: Bluetooth 4.0 standard, internal antenna/ GPS: Integrated Assisted GPS (A-GPS) with fast position acquisition and low power consumption; included with WWAN radio. |

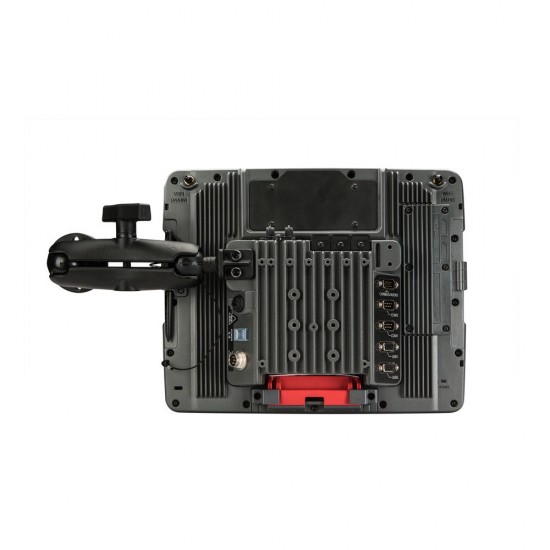

| Interface-Ports |
Enhanced Dock: 2x powered RS-232 COM ports,
1x USB 2.0 powered host port Type A, 3 additional
USB 2.0 powered host ports, 1x USB 2.0 Client port,
1x Ethernet RJ45 port, 1x CAN-bus port,
1x headset port, DC power input and ignition
control input.
Standard Dock: 2x powered RS-232 COM ports, 1x
USB 2.0 powered host port, 1x USB 2.0 Client port,
1x CAN-bus port, 1x headset port, DC power input
and ignition control input.
Computer: RF Antenna ports for Wi-Fi (2), optional
RF ports for WWAN (2) and GPS (1) |
| Keyboard |
Seven programmable multi-function keys |
| Sealing |
IP66 |
| Resistance |
Operating Temperature: -30°C to +50°C (-22°F to +122°F)/ Storage Temperature: -30°C to +50°C
(-22°F to +122°F)/ Humidity: 5% to 95% non-condensing. |
| Dimensions/ Weight pda |
Dimensions: Computer: 318 x 260 x 62 mm (12.5 x 10.3 x 2.4 in); Dock: 180 x 155 x 54 mm (7.1 x 6.1 x 2.1 in); Assembled Depth: 104 mm (4.1 in)/ Weight: Computer: 3.0 kg (6.65 lbs); Standard/ Dock: 1.5 kg (3.2 lbs); Enhanced Dock: 1.1 kg (2.4 lbs) Dock weights include mounting ball. |
| Power supply mobile terminals |
Power Supply & UPS: 10 to 60 VDC isolated,
optional external converters for AC (90–240 VAC)
and extended range DC (60–150 VDC); integrated
Li-Ion maintenance UPS with 30-min life at -30°C
(-22°F) |
| Additional features mobile terminals |
Vibration MIL-STD-810F, composite wheeled vehicles/ Audio: Audio for headset, integrated stereo speakers with adjustable volume control, integrated
microphone |
