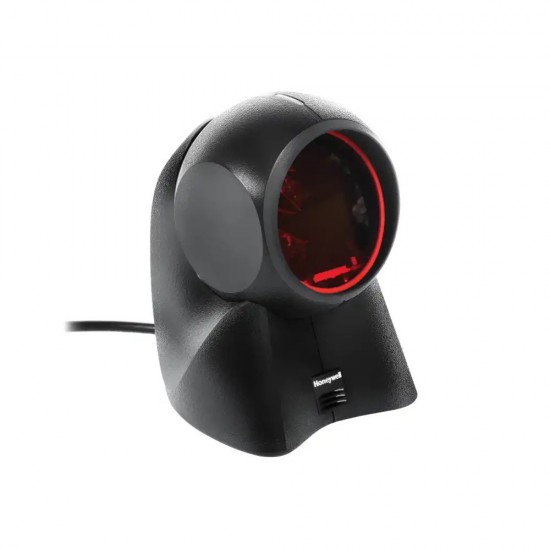

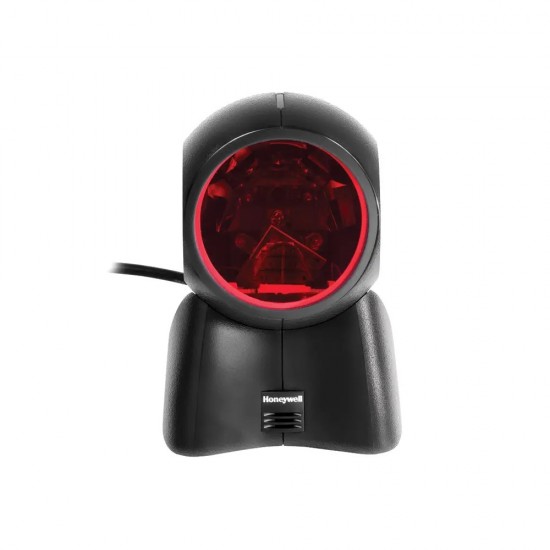

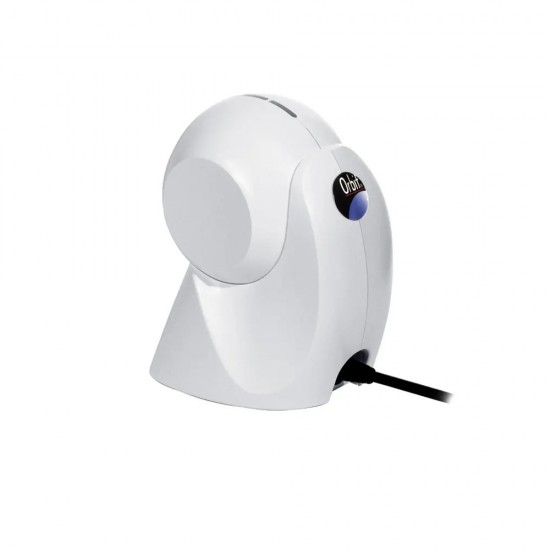

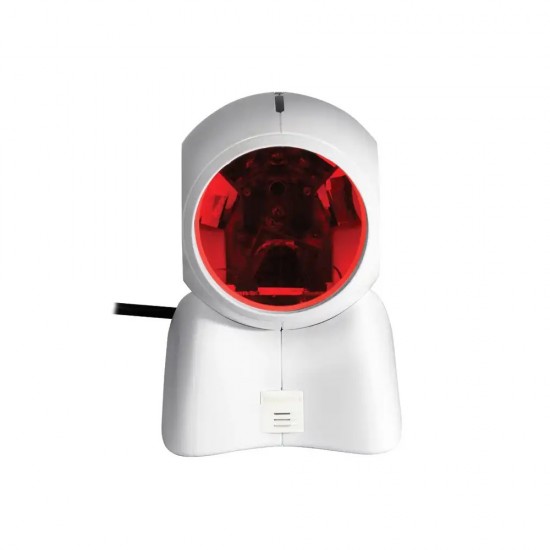

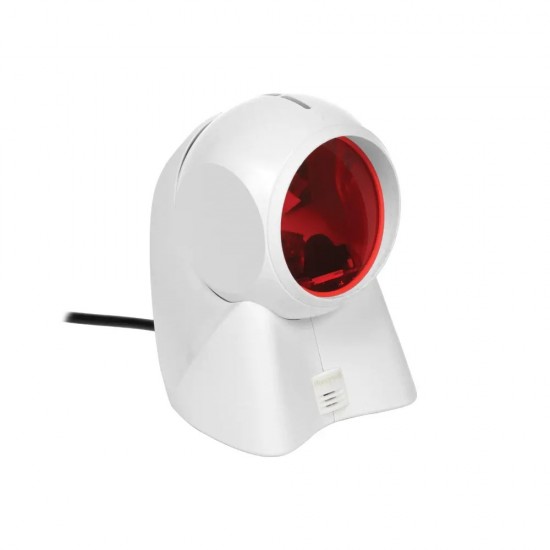

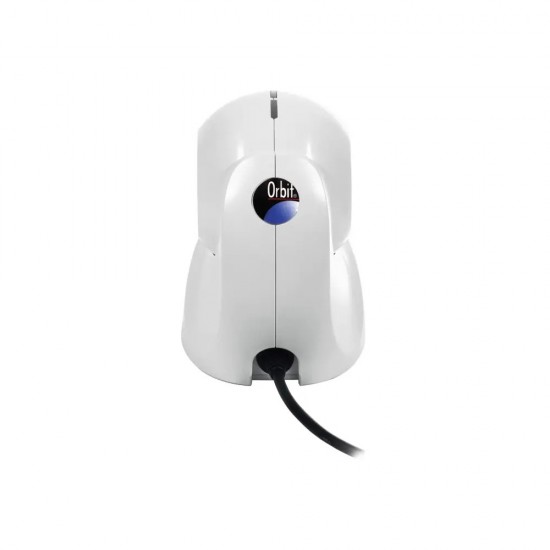

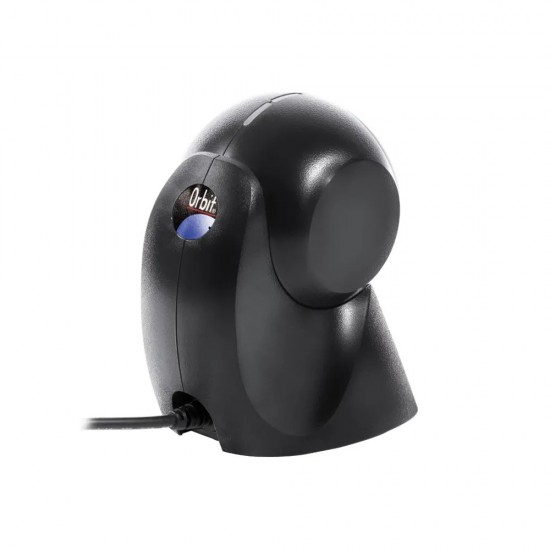

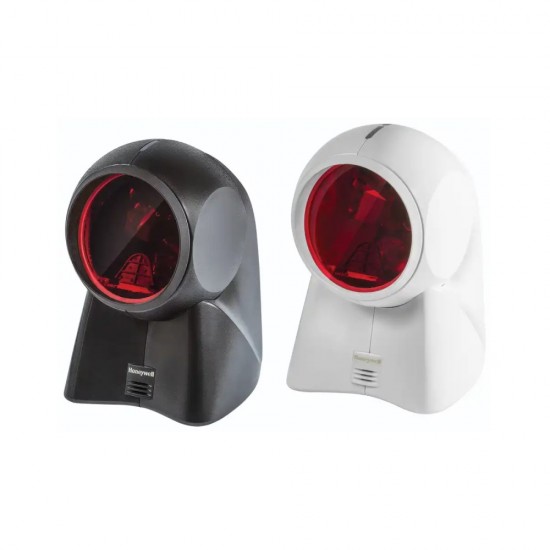

Orbit 7190g Barcode Scanner

Orbit 7190g  Barcode Scanner
Orbit 7190g  Barcode Scanner
Orbit 7190g  Barcode Scanner
Orbit 7190g  Barcode Scanner
Orbit 7190g  Barcode Scanner
Orbit 7190g  Barcode Scanner
Orbit 7190g  Barcode Scanner
Orbit 7190g  Barcode Scanner
Orbit 7190g  Barcode Scanner
Orbit 7190g  Barcode Scanner
Orbit 7190g  Barcode Scanner
Orbit 7190g  Barcode Scanner
Orbit 7190g  Barcode Scanner
Orbit 7190g  Barcode Scanner
Orbit 7190g  Barcode Scanner
Orbit 7190g  Barcode Scanner
Orbit 7190g  Barcode Scanner
Orbit 7190g  Barcode Scanner
Orbit 7190g  Barcode Scanner
Orbit 7190g  Barcode Scanner
Orbit 7190g Barcode Scanner

Downloads

File Size Download
orbit-7190g-hands-free-scanner-en (1).pdf 385.93KB Download
sps-ppr-orbit-7190g-barcode-scanner-sales-powerpoint.pdf 980.11KB Download

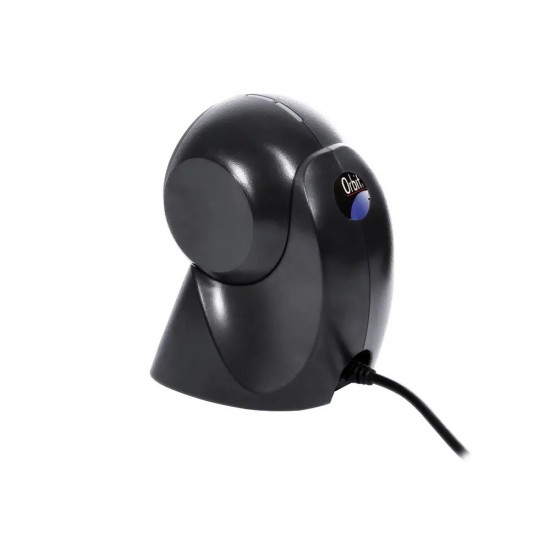

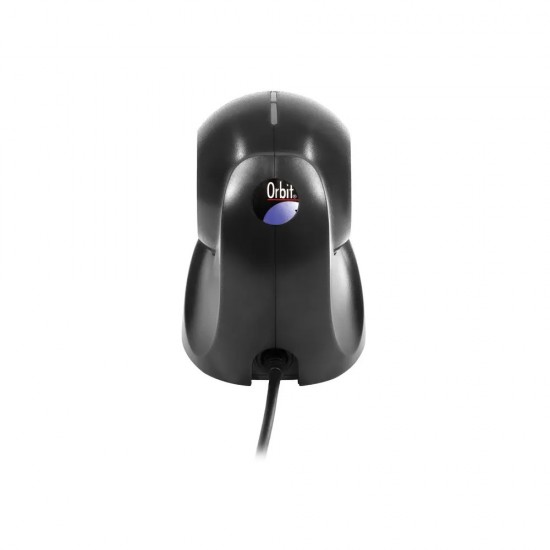

Barcode Scanner Honeywell Orbit 7190g

The Orbit 7190g scanner continues the proven, superior 1D laser scanning performance of Orbit series scanners but adds an area imager for seamless scanning of digital 1D, 2D and PDF codes in a single, convenient device. To speed retail checkouts, the Orbit 7190g scanner features a unique dual-modes design that is optimized for both the cashier and the customer enabling seamless product barcode scanning and scanning of digital codes off customer smartphones.The Orbit 7190g is a plug-and-play scanner, and installing it into existing checkout systems is easy. Multiple on-board interfaces make the Orbit 7190g scanner compatible with most POS systems and automatic interface detection enables the scanner to configure itself to the appropriate interface upon connection eliminating the cumbersome task of scanning programming barcodes.


Specifications

Scanners
Reading mode 1D/2D
Scanning range/ Βάθος πεδίου LASER: CODE 39: 0 mm – 50 mm (0 in – 2.0 in), 7.5, 0 mm – 150 mm (0 in – 5.9 in), 0 mm – 220 mm (0 in – 8.7 in). UPC: 0 mm – 275 mm (0 in – 10.8 in). UPC-E: 0 mm – 300 mm (0 in – 11.8 in). IMAGER: CODE 39: 0 mm – 70 mm (0 in – 2.8 in), UPC: 0 mm – 245 mm (0 in – 9.6 in), PDF417: 0 mm – 70 mm (0 in – 2.8 in). DATAMATRIX: 0 mm – 75 mm (0 in – 3.0 in). QR: 0 mm – 200 mm (0 in – 7.9 in). C39: 0 mm – 327 mm (0 in – 12.9 in).
Scanning range/ Width of Field LASER: 5 MIL CODE 39, 7.5 MIL CODE 39, 10 MIL CODE 39, 3 MIL UPC, 26 MIL UPC-E. IMAGER: 5 MIL CODE 39, 13 MIL UPC, 6.7 MIL PDF417, 10 MIL DATAMATRIX, 20 MIL QR, 20 MIL C39.
Scan Rate Ρυθμός σάρωσης 1120 scan lines per second; single line. FPS: 30
Resolution Laser: 5 mil; Imager: 1D: 4mil, 2D: 6.7 mil
Interfaces USB, RS232, Keyboard Wedge, IBM 468xx (RS485)
Dimensions 08 mm x 103 mm x 148 mm (4.3 in x 4.1 in x 5.8 in)
Weight 410 g (14.5 oz)
Ambient light Laser: 4842 Lux. Imager: 100000 Lux
Sealing Sealed to resist airborne particulate contaminants
Symbologies Laser: Reads standard 1D, GS1 DataBar symbologies Imager: Reads standard 1D, PDF and 2D symbologies
Additional features Input Voltage 5 VDC ± 0.25 V/ Operating Power472 mA @ 5 V)/ Standby Power 255 mA @ 5V)/ Operating Temperature: 0°C to 40°C (32°F to 104°F)/ Storage Temperature: -40°C to 60°C (-40°F to 140°F)/ Humidity 5% to 95% relative humidity, non-condensing/ Drop Designed to withstand 1.2 m (4 ft) drops.
