Scanner Datalogic Gryphon GPS 4490 1D 2D

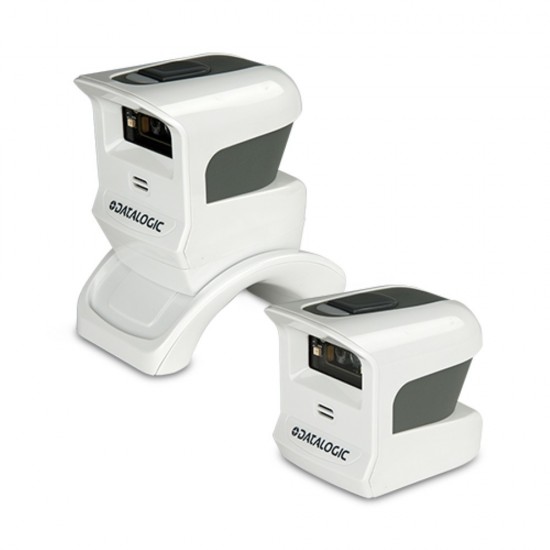

The Gryphon™ GPS4490 area imager is a full 2D presentation scanner in a compact and stylish body. This reader’s compact size makes it the ideal solution for space-constrained environments. Its adjustable stand positions the scanner for easy, intuitive reading. The stand can easily be removed if it is not needed, further reducing the overall dimensions of the scanner. Capable of reading codes from mobile phones, PDAs and computer display screens, the GPS4400 presentation scanner also features high motion tolerance, snappy reading and offers excellent performance on decoding poor or damaged bar codes. The Gryphon™ GPS4490 offers good-read visual confirmation with Datalogic’s patented ‘Green Spot’ technology as well as supporting advanced features like image / signature capture and document scanning, eliminating the need for separate equipment at the POS.

Specifications

Scanners
Reading mode 1D / LINEAR CODES: Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes. 2D CODES: Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
Scanning range/ Βάθος πεδίου Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent.Data Matrix: 10 mils: 2.3 to 14.5 cm / 0.9 to 5.7 in. Data Matrix: 15 mils: 0.0 to 23.2 cm / 0.0 to 9.1 in. EAN: 13 mils: 0.8 to 42.2 cm / 0.3 to 16.6 in. PDF417: 10 mils: 0.0 to 22.4 cm / 0.0 to 8.8 in. QR Code: 10 mils: 2.3 to 14.3 cm / 0.9 to 5.6 in.Code 39: 5 mils: 2.6 to 18.8 cm / 1.0 to 7.4 in Code 39: 10 mils: 0.0 to 37.9 cm / 0.0 to 14.9 in
Scanning range/ Width of Field Horizontal x Vertical: 40° H x 26° V
Resolution 1D / Linear Codes: 0.102 mm / 4 mils Data Matrix: 0.178 mm / 7 mils
Interfaces RS-232. USB: OEM USB. USB COM. USB HID Keyboard
Dimensions With Stand: 12.1 x 10.7 x 7.3 cm / 4.8 x 4.2 x 2.9 in Without Stand: 7.4 x 9.5 x 6.4 cm / 2.9 x 3.7 x 2.5 in
Weight With Stand: 295.0 g / 10.4 oz. Χωρίς βάση:178.0 g / 6.3 oz
Ambient light 0 to 100,000 lux
Sealing IP52
Symbologies POSTAL CODES Australian Post; British Post; Canadian Post; China. Post; IMB; Japanese Post; KIX Post; Korea Post; Planet Code; Portuguese Post; Postnet; Royal Mail. Code (RM4SCC); Swedish Post STACKED CODES EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar. Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
Additional features DROP RESISTANCE Withstands repeated drops from 1.2 m / 4.0 ft onto a concrete surface. Προστασία ESD (AIR DISCHARGE) 16 kV. Υγρασία (NON-CONDENSING) 90%. TEMPERATURE Operating: 0 to 40 °C / 32 to 104 °F. Storage/Transport: -40 to 70 °C / -40 to 158 °F
