Magellan 1100i 1D Scanner

Magellan 1100i 1D Scanner
Magellan 1100i 1D Scanner
Magellan 1100i 1D Scanner
Magellan 1100i 1D Scanner
Magellan 1100i 1D Scanner
Magellan 1100i 1D Scanner
Magellan 1100i 1D Scanner
Magellan 1100i 1D Scanner
Magellan 1100i 1D Scanner
Magellan 1100i 1D Scanner
Magellan 1100i 1D Scanner

Downloads

File Size Download
magellan-1100-1d-magellan-1100i.pdf 915KB Download

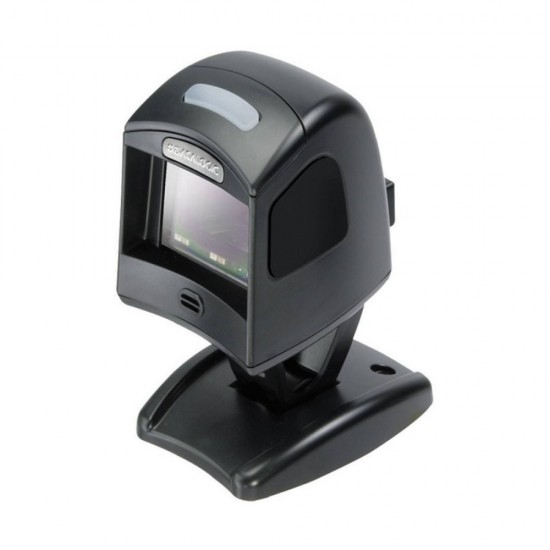

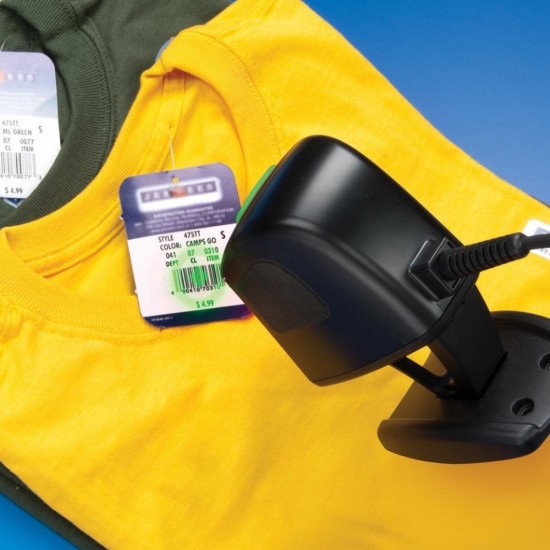

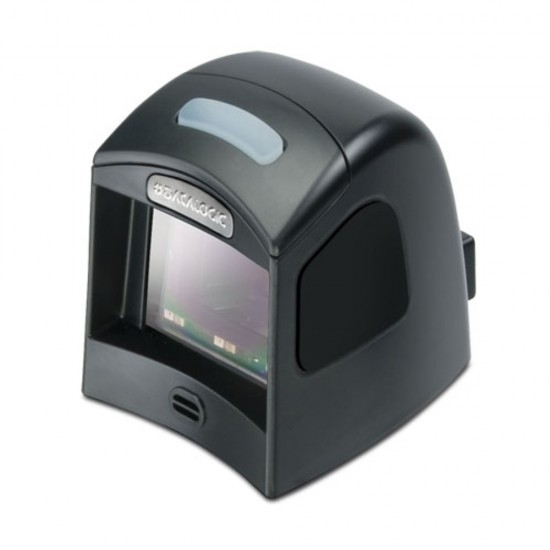

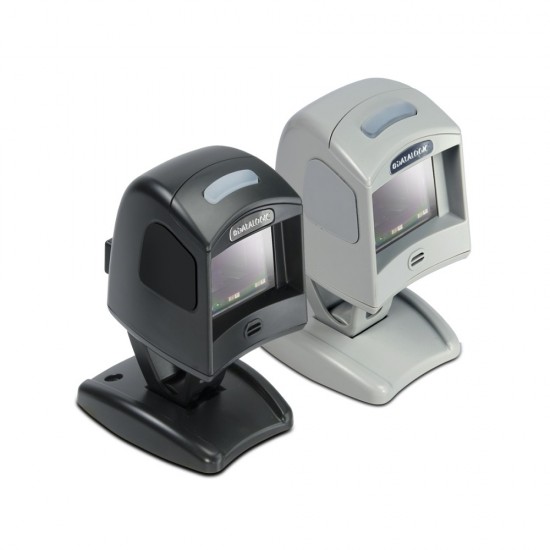

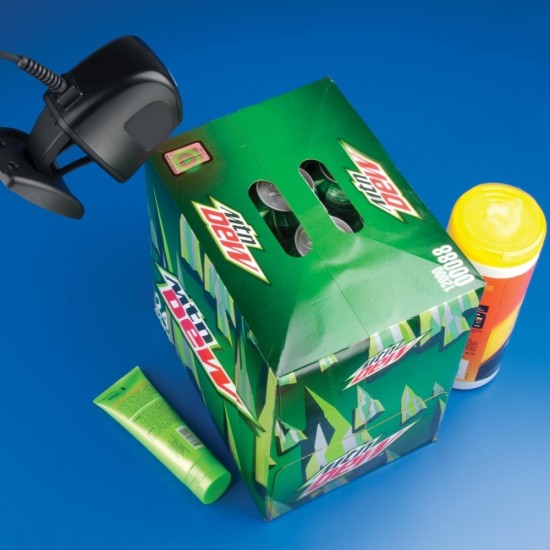

Scanner Datalogic Magellan 1100i 1D

The Magellan™ 1100i omnidirectional presentation scanner. Is a high performing and versatile data collection tool for a variety of applications. Datalogic’s Illumix™ intelligent illumination technology in the Magellan 1100i reader optimizes light levels to automatically capture images and read codes from mobile phones, PDAs, or computer display screens. The Magellan™ 1100i omnidirectional presentation scanner is a high performing and versatile data collection tool for a variety of applications. It uses Datalogic’s latest digital imaging technology to provide intuitive and fast reading performance on 1D and 2D bar codes as well as supporting advanced features like image capture and EAS tag deactivation.

Specifications

Scanners
Reading mode 1D / LINEAR CODES. A
Scanning range/ Βάθος πεδίου 1D / Linear Codes: 5 mils: 1.3 to 4.6 cm / 0.5 to 1.8 in 7.5 mils: 0.63 to 5.71 cm / 0.25 to 2.25 in 10 mils: 0 to 12.7 cm / 0 to 5.0 in 13 mils UPC: 0 to 17.7 cm / 0 to 7.0 in 20 mils: 0 to 17.7 cm / 0 to 7.0 in
Scanning range/ Width of Field READING ANGLE: Pitch: +/- 65°; Roll (Tilt): 0 - 360°; Skew (Yaw): +/- 75°
Scan Rate Ρυθμός σάρωσης 1,768 digital scan lines/sec
Resolution 0.130 mm / 5 mils
Interfaces IBM 46xx; Keyboard Wedge; OEM (IBM) USB; RS-232; USB
Dimensions Riser Stand: 5.9 x 7.6 x 9.7 cm / 2.3 x 3.0 x 3.8 in Scanner: 8.4 x 7.1 x 9.4 cm / 3.3 x 2.8 x 3.7 in
Weight Riser Stand: 187.1 g / 6.6 oz Scanner: 198.5 g / 7.0 oz
Ambient light Indoor: 0 to 6,000 lux
Sealing IP52
Symbologies Αutodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
Additional features DROP RESISTANCE Withstands repeated drops from 1.2 m / 4.0 ft onto a concrete surface ESD PROTECTION (AIR DISCHARGE) 25 kV. HUMIDITY (NON-CONDENSING) 5 - 95%. TEMPERATURE Operating: 0 to 40 °C / 32 to 104 °F. Storage/Transport: -40 to 70 °C / -40 to 158 °F
