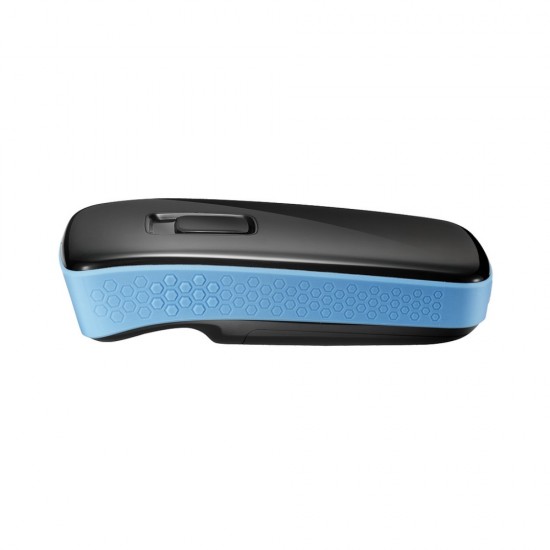

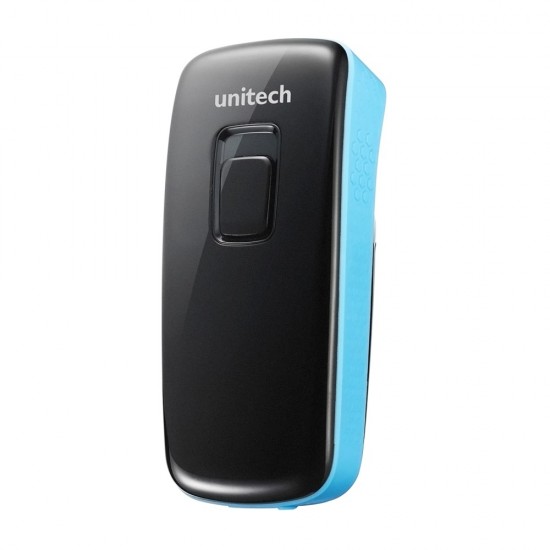

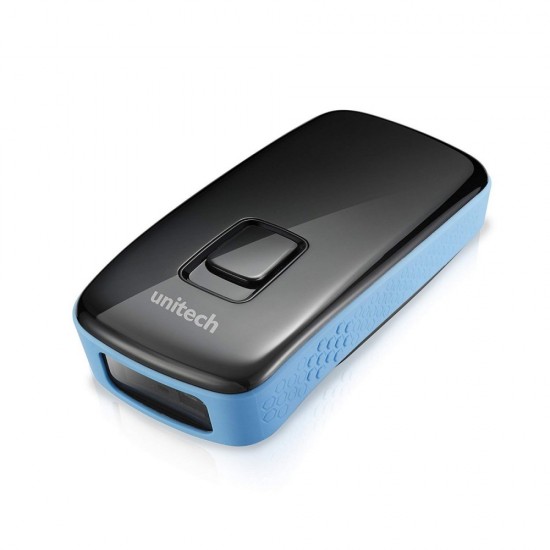

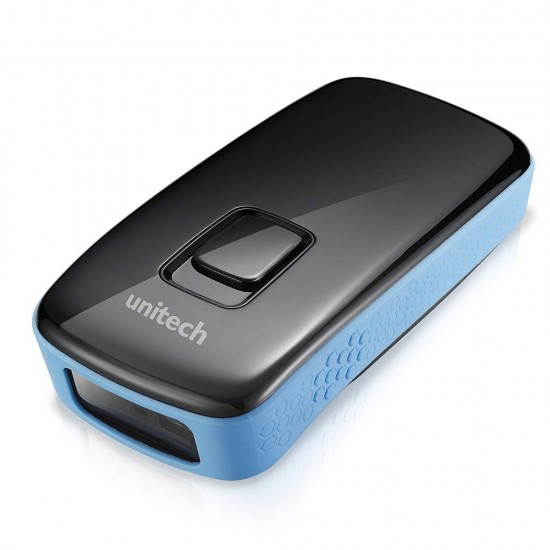

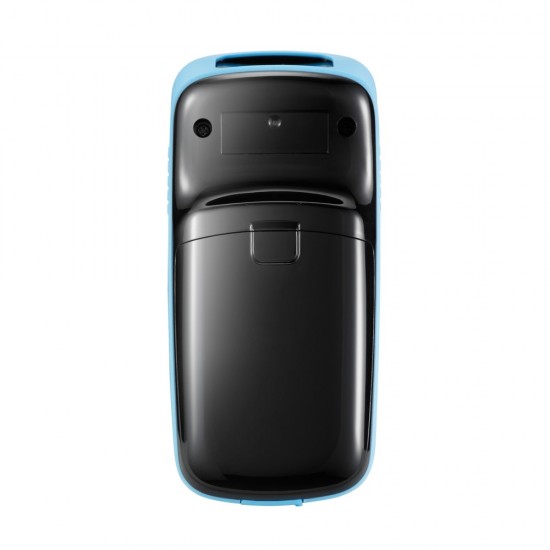

Scanner MS920 2D Pocket imager

Very small sized, the MS920 is reading 1D, 2D, QR CODE, and has the ability of wireless sending data up to 100 meters in open space!!!  Unitech MS920 is a new generation of wireless 2D barcode scanner that doubles the excellent decoding performance in a pocket-sized enclosure. Thanks to its compact & lightweight design for easy mobility, MS920allows enterprises to simply scan and transmit 1D and 2D barcode in real time to the host wirelessly or to store scanned data in the built-in memory.


Specifications

Scanners
Reading mode 1D & 2D barcodes, both paper & digital. Image Sensor, 752 x 480 pixels
Scanning range/ Βάθος πεδίου Label / DOF near far. Code 39, 4 mils 45 mm 225 mm. Code 39, 20 mils 60 mm 640 mm. Code 39, 40 mils 125 mm 975 mm. Label / DOF near far. Data Matrix, 7 mils 65 mm 150 mm. Data Matrix, 10 mils 45 mm 210 mm. Data Matrix, 15 mils 47 mm 310 mm. Label / DOF near far. PDF 417, 6.6 mils 50 mm 182 mm. PDF 417, 10 mils 37 mm 275 mm. PDF 417, 15 mils 45 mm 400 mm. Label / DOF near far. EAN / UPC, 13 mils 45 mm 410 mm.
Scanning range/ Width of Field Skew Angle Variance ±58 degrees/ Pitch Angle Variance ±86 degrees
Resolution 1D Codes 0.1 mm (4 mils)/ 2D Codes 0.167 mm (6.6 mils)
Interfaces Wireless Communication 2.4GHz, Wireless Protocol Wireless SPP & HID profiles, Range Class I 330ft/100M (Line of Sight), Host Interface supported USB.
Dimensions 109.3 mm. H x 51.4 mm. W x 28.1 mm. D
Weight 105.2 g (with battery)
Ambient light Illumination: Highly visible white LED/ Aiming : 617 nm red LED
Sealing IP54
Symbologies 1D: EAN/UPC, GS1 Databar (limited expanded & omni-directional), Code 39, Code 128, UCC/EAN 128, ISBN, ISBT, Interleaved/Matrix/ Industrial and Standard 2 of 5, Codabar, Code 93/93i, Code 11, MSI, Plessey, Telepen, 2D: Data Matrix, PDF417, Micro PDF 417, Codablock, Maxicode, QR, Aztec Postal: Australian Post, BPO, Canada Post, Dutch Post, Japan Post, PostNet, Sweden Post
Additional features Operation Voltage: DC 3V to 5V. Current Consumption Operation mode: 76.8mA. Battery Type Field Replaceable Battery Rechargeable Lithium-ion. Battery Duration: 1100mAh. Battery Charging time: Fully charged in 4 hours. Operating Time: Over 13 hours ( 1 scan / 3 seconds)
