MS7180 Orbit 1D Scanner

MS7180 Orbit 1D Scanner
MS7180 Orbit 1D Scanner
MS7180 Orbit 1D Scanner
MS7180 Orbit 1D Scanner
MS7180 Orbit 1D Scanner
MS7180 Orbit 1D Scanner
MS7180 Orbit 1D Scanner
MS7180 Orbit 1D Scanner
MS7180 Orbit 1D Scanner
MS7180 Orbit 1D Scanner
MS7180 Orbit 1D Scanner

Downloads

File Size Download
orbit-7120-orbitcg-7180-hands-free-scanner-data-sheet-en.pdf 332.85KB Download

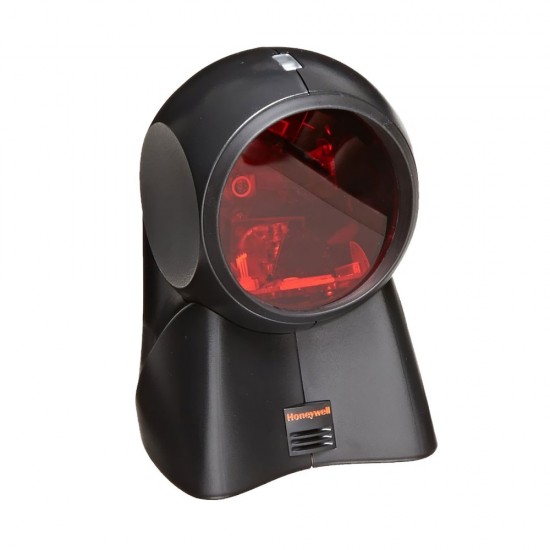

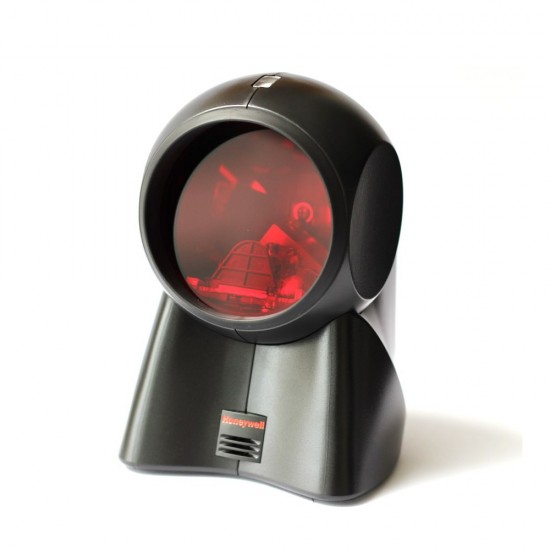

Scanner MS7180 Orbit 1D

Orbit™ is the all-time, best-selling hands-free omnidirectional scanner for a reason.  If you’re a retailer in need of an affordable, yet aggressive omnidirectional scanning solution that’s aesthetically pleasing to boot, the Honeywell Orbit series is tough to beat. Orbit series scanners maximize your customers’ satisfaction and employees’ efficiency with a patented 20-line scan pattern, an easy-to-find sweet spot and a scan speed of 1,120 scans per second. The Orbit series features an award-winning design that’s compact, lightweight and rugged. Its shape enables handheld scanning of large, bulky items. And for added flexibility, the scanning head can be tilted within a 30 degree range to accommodate objects of various sizes and shapes. If your applications require menu scanning, choose the OrbitCG 7180 scanner. CodeGate technology makes it easy to target the desired barcode and complete data transmission with the push of a single button. The scanner’s expanded ability to update its firmware via Honeywell’s free patented MetroSet™2 configuration software safeguards long-term infrastructure commitments in the event of a change in the POS system or software.

Specifications

Scanners
Reading mode 1D Omnidirectional
Scanning range/ Βάθος πεδίου 0 mm – 50 mm (0 in – 2.0 in)/ 0 mm – 150 mm (0 in – 5.9 in)/ 0 mm – 220 mm (0 in – 8.7 in)/ 0 mm – 275 mm (0 in – 10.8 in)/ 0 mm – 300 mm (0 in – 11.8 in)
Scanning range/ Width of Field Pitch 60°, Skew 60°
Scan Rate Ρυθμός σάρωσης Omnidirectional: 1120 scan lines per second; single line: 56 scan lines per second (7180)
Resolution Laser: 5 mil; Imager: 1D: 4mil, 2D: 6.7 mil
Interfaces USB, RS232, Keyboard Wedge, IBM 468xx (RS485)
Dimensions 105 mm x 102 mm x 150 mm (4.1 in x 4.0 in x 5.9 in)
Weight 400 g (14.1 oz)
Ambient light 4842 Lux
Sealing Sealed to resist airborne particulate contaminants
Symbologies Reads standard 1D and GS1 DataBar symbologies
Additional features Input Voltage 5 VDC ± 0.25 V/ Operating Power 900 mW (180 mA @ 5 V)/ Standby Power 850 mW (170mA @ 5 V)/ Operating Temperature 0°C to 40°C (32°F to 104°F)/ Storage Temperature -40°C to 60°C (-40°F to 140°F)/ Humidity 5% to 95% relative humidity, non-condensing/ Drop Designed to withstand 1.2 m (4 ft) drops
