L7082 LIBRA Scanner 1D/2D

L7082 LIBRA Scanner 1D/2D
L7082 LIBRA Scanner 1D/2D
L7082 LIBRA Scanner 1D/2D
L7082 LIBRA Scanner 1D/2D
L7082 LIBRA Scanner 1D/2D

Downloads

File Size Download
datasheet-l-7082i.pdf 546.87KB Download

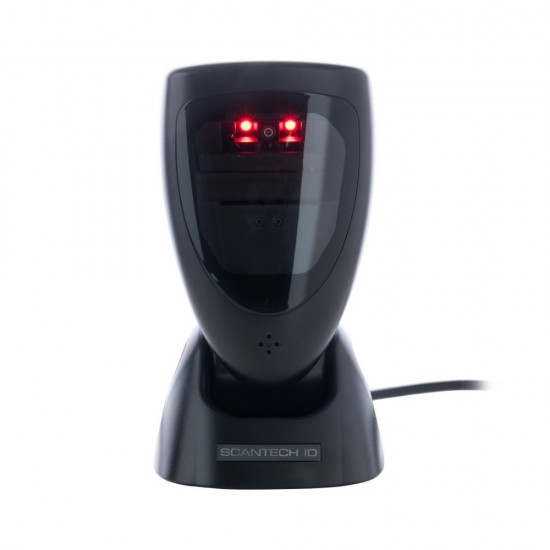

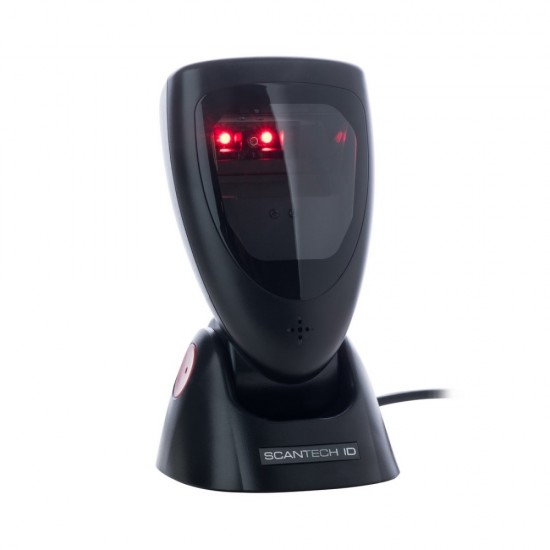

Scanner LIBRA L7082 1D/2D

The LIBRA L-7082i is an omni-directional presentation area imager bar code scanner, it uses digital imaging technology to provide intuitive and blazing reading of 1D and 2D bar codes without sacrificing scanning quality or performance. It provides great performance and reliability along with a rich feature set to provide excellent value in virtually any desktop presentation bar code scanning system. With the L-7082i, not only can identify product pricing barcode label, furthermore, it is able to scan virtually mobile bar code on various types of display to enhance service levels. When space is limited but high performance is required, its compact size and footprint make it the ideal solution for space-constrained environments. Its precise imaging scan volume is perfect for hands-free scanning in confined spaces and helps reduce accidental misreads of items, improving productivity and customer satisfaction. The L-7080i reader includes a powerful configuration tool which allows easy integration into existing or new host systems, allows management to manage maintenance.

Specifications

Scanners
Reading mode 1D, 2D
Scanning range/ Βάθος πεδίου Up to 210mm@20 mil/0.5mm, PCS90%, Code 39
Scanning range/ Width of Field Horizontal: 40°, Vertical: 25°
Scan Rate Ρυθμός σάρωσης 60 images per second
Resolution 1D: 4mil/0.1mm, 2D: 10mil/0.25mm
Interfaces RS232, USB(HID, Virtual COM)
Dimensions 94 x 97.71 x 161.51 mm
Weight 378g/13.33oz
Ambient light 100,000 Lux
Sealing IP42
Symbologies 1D Symbologies: UPC-A, UPC-E, EAN-8/JAN-8, EAN-13/JAN-13, Code 39, Code 128, Interleaved 25, Industrial 25, Matrix 25, Codabar/NW7, Code 93 China Post, MSI/Plessey, Telepen, GS1 Databar Omni-directional, GS1 Databar Limited, GS1 Databar Expended.2D Symbologies: Aztec, Aztec Mesas, Data Matrix, Maxi Code, PDF 417, Micro PDF 417, QR Code, Micro QR Code, GM Code, Han Xin Code
Additional features Supply Voltage DC Adaptor(+5V), Stand by (Typ.) 180mA, Operation (Typ.) 360mA
