Senor K5SE Touch POS J6412

Downloads

File	Size	Download
Senor-K5se-ics.pdf	1.17MB	Download

Description

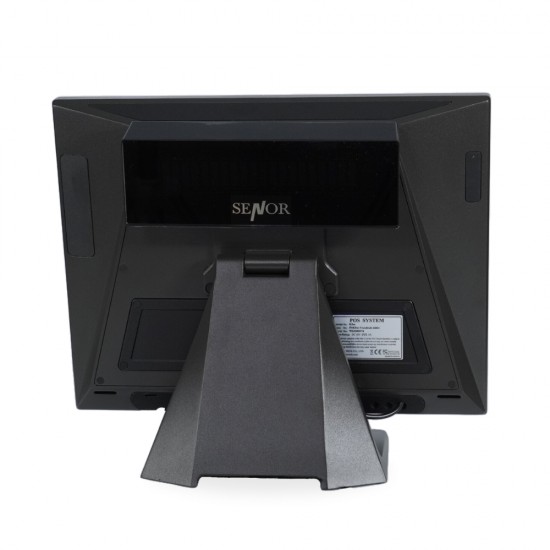

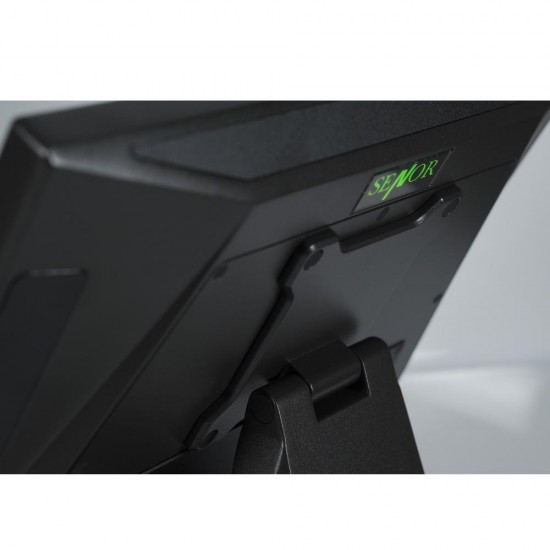

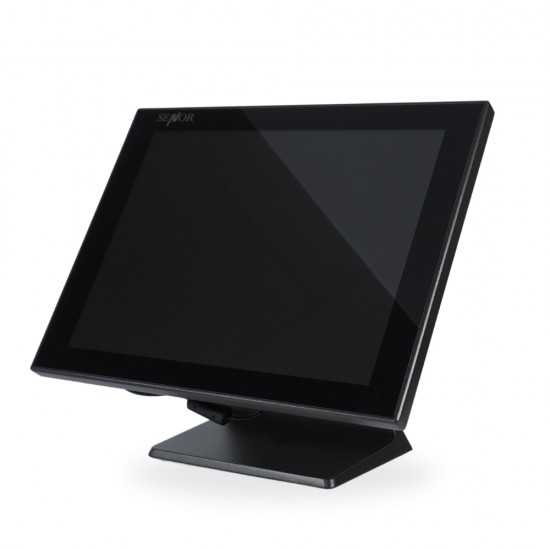

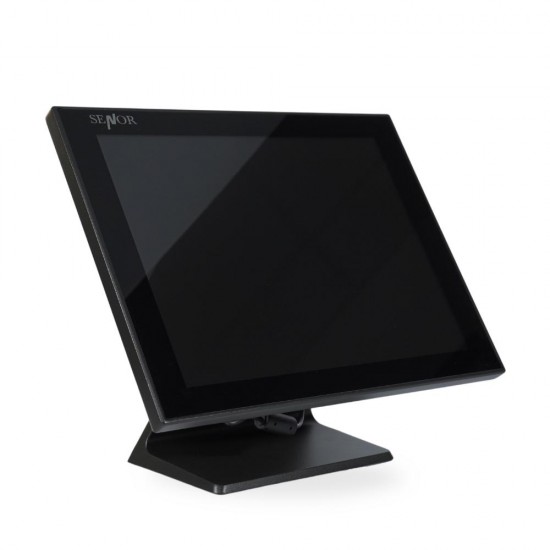

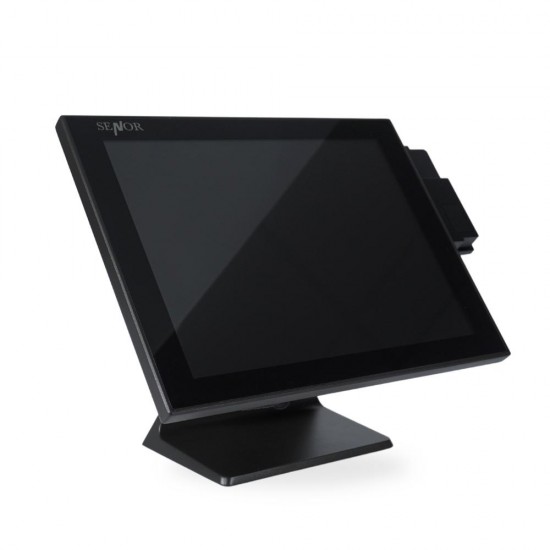

Senor K5SE J6412 Touch POS IP66

It is specially developed to operate in retail and hospitality envirnments. Very elegant and slim die-cast construction. Features in every place of customer service and work flow support, with indicated cable managment solution in the base of the system. Safety and modern design combined in one! Easily upgraded with various interface and simple access parts, like SSD. VESA mount dupporting alternative implementation and operation according to the needs of the company. Whole unit resistant to water and dust. Powerful CPU, advanced Projected capacitive touch screen. Multiple Peripheral Options.

SENOR

Specifications

Touch Systems
Monitor	15" LED-backlit TFT LCD
CPU	Intel Celeron J6412 (1.5M Cache, 2.60 GHz)
Memory	8GB
Disk	128GB SSD
Operating System	Windows 10 IoT Entry, Windows 11 IoT Entry
Resolution	1024 x 768
USB Ports	4 x USB 2.0 + 2 x USB 3.0
Additional Ports	1 External display port. COM port 3RJ48 Cash drawer port 1RJ11 (24V) Audio port 1*3.5 mm CTIA (Line-out/Mic-In)
Power supply	100~240V, 50/60Hz
Temperature/ Humidity	Operating temperature: 0°C - 40°C. Storage temperature: -20°C- 60°C. Humidity: 10%-90%.
Dimensions/ Weight	Dimensions: 366 x 159 x 302mm. Weight: 6 kgs

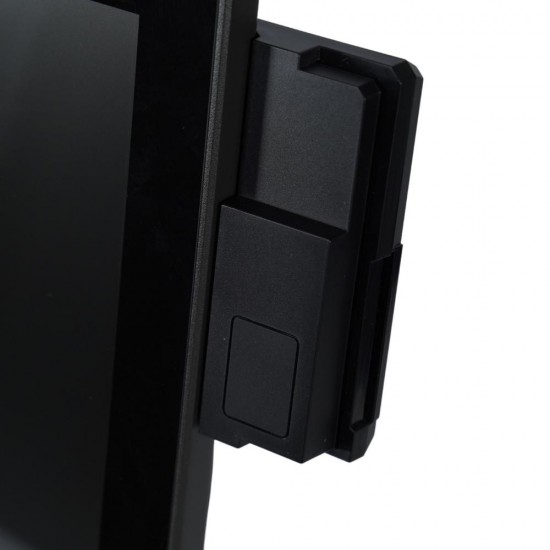

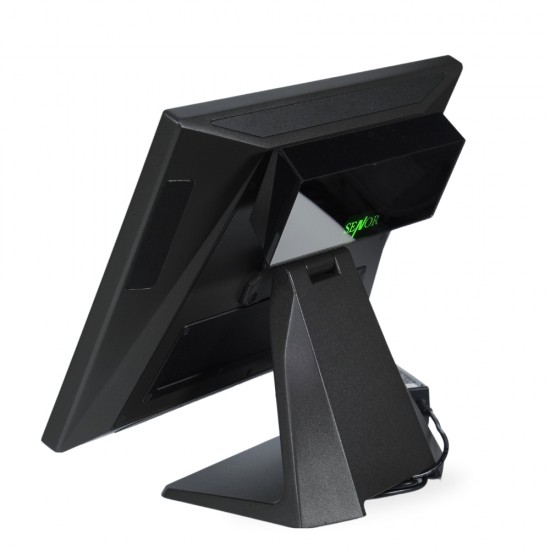

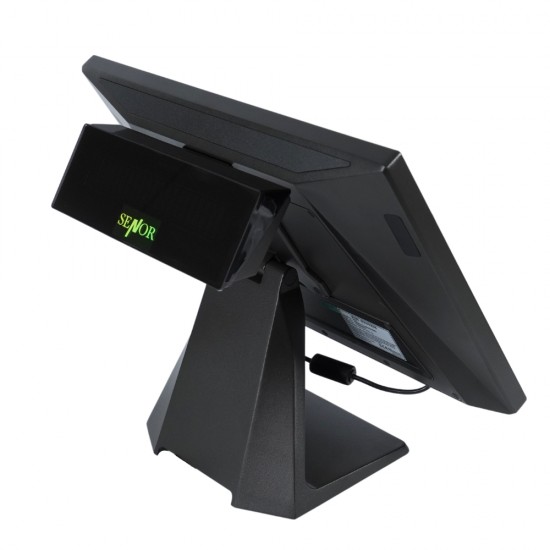

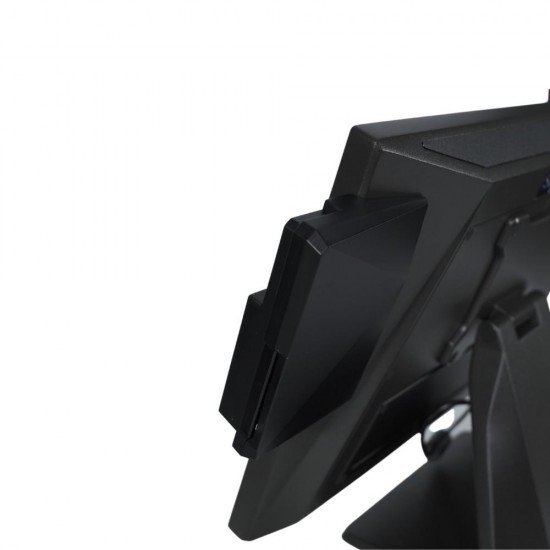

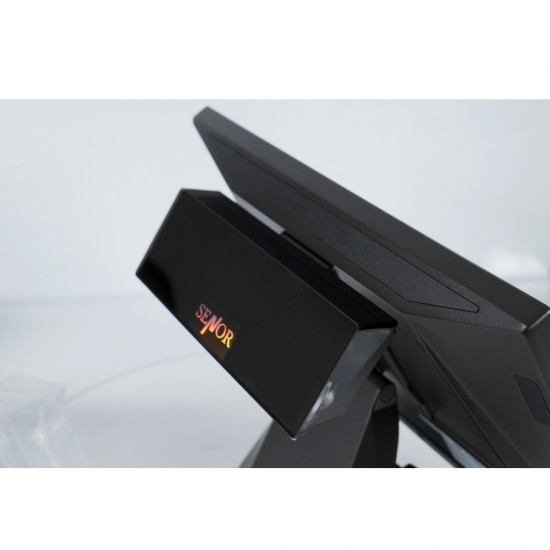

Additional features Touch Touch Systems	Touchscreen PCT (Projective Capacitive Touch). 2 Speakers *2W. Peripheral Options: Customer display 9.7” M9 / 10” M10 / 15” M15 (Touch Available) VFD 2x20 Line Display. Magnetic card reader. Smart card reader. Fingerprint reader. iButton reader. 1D / 2D Barcode Scanner. RFID reader. Wireless Communications + Bluetooth. Safety & IP rating FCC/CE, IP54.
