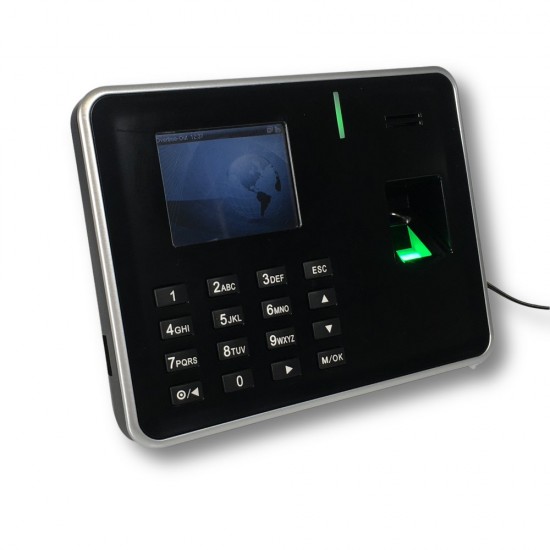

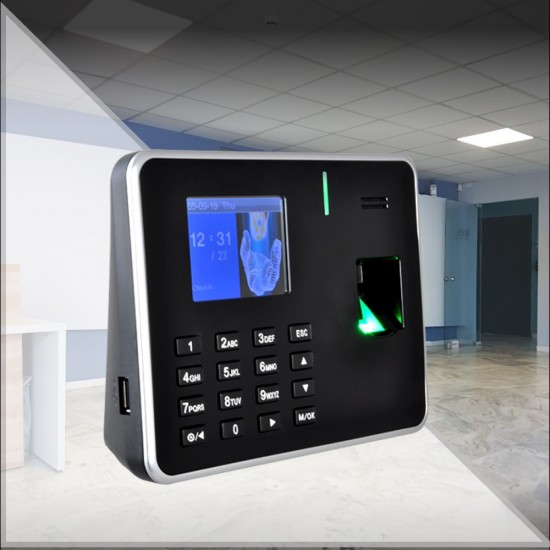

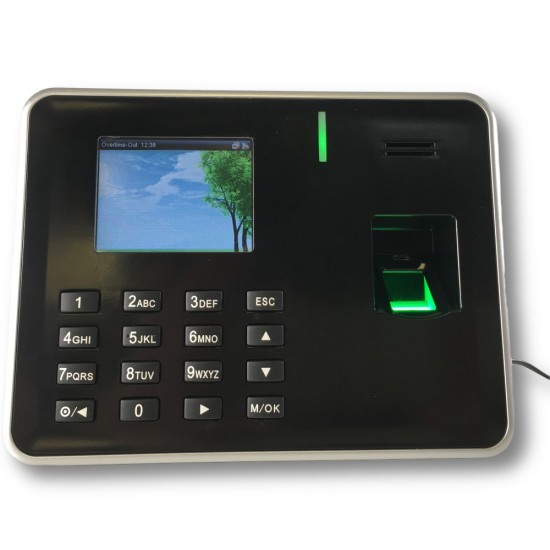

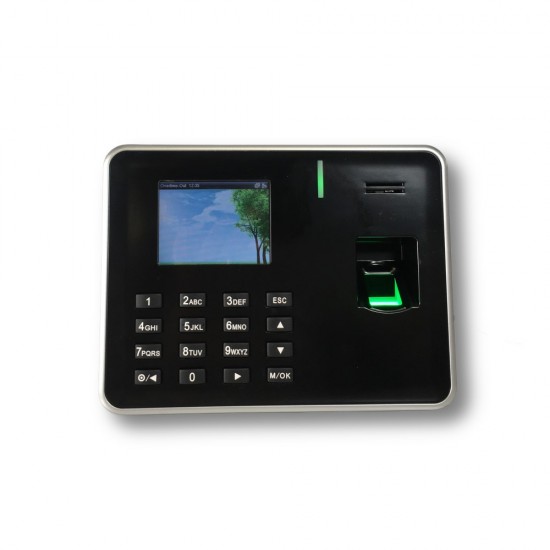

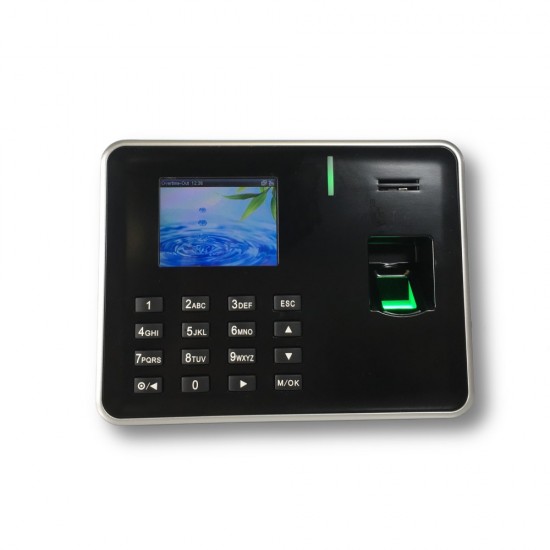

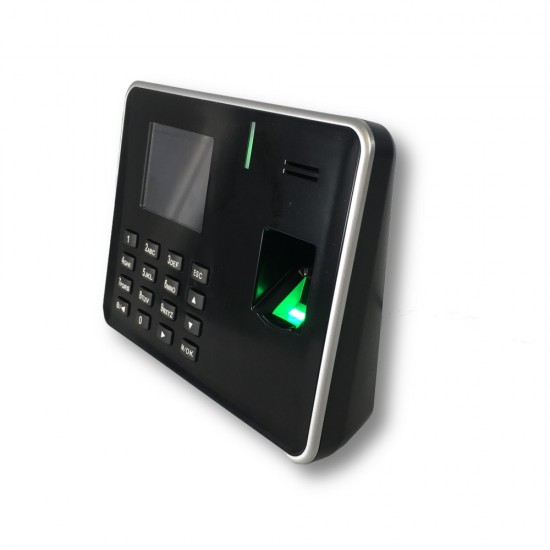

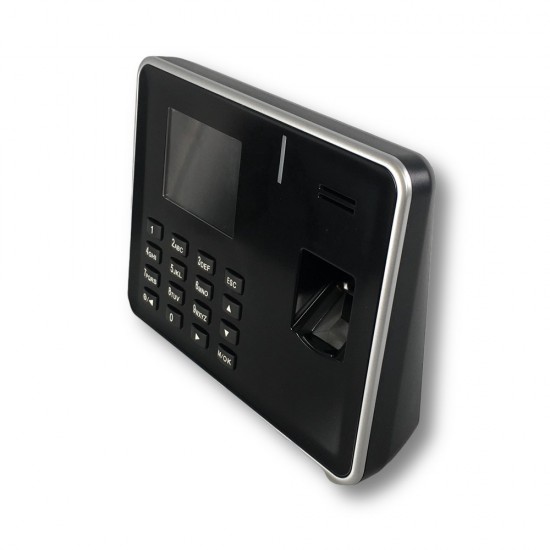

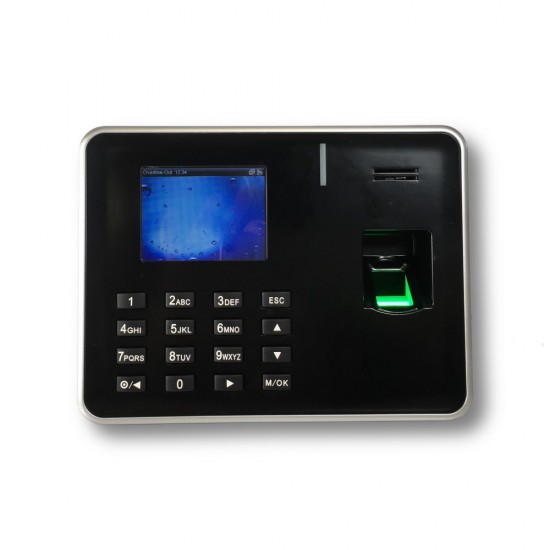

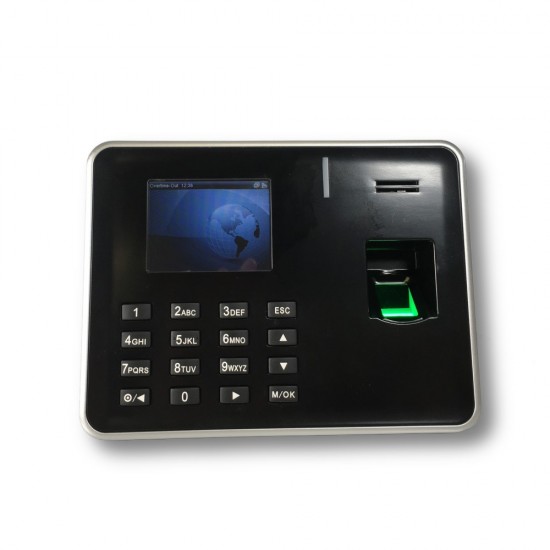

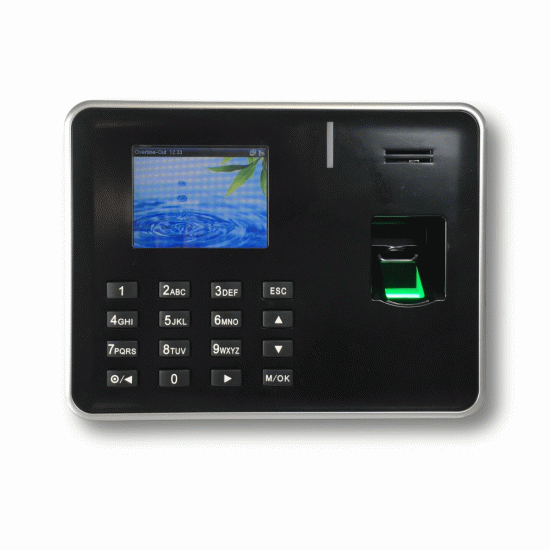

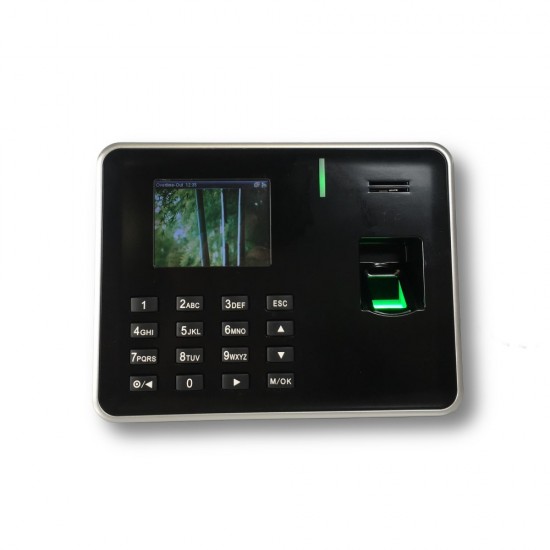

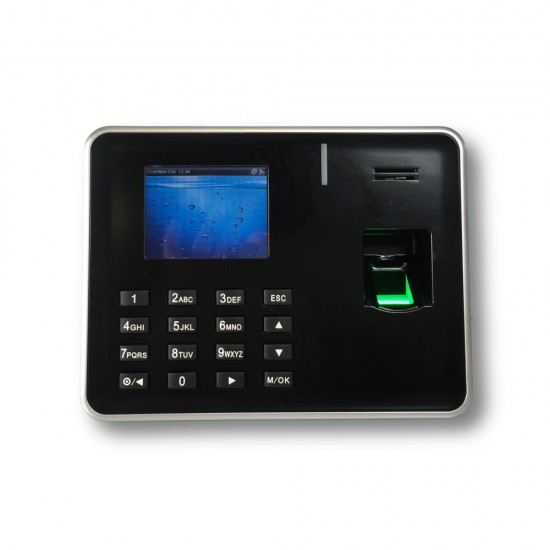

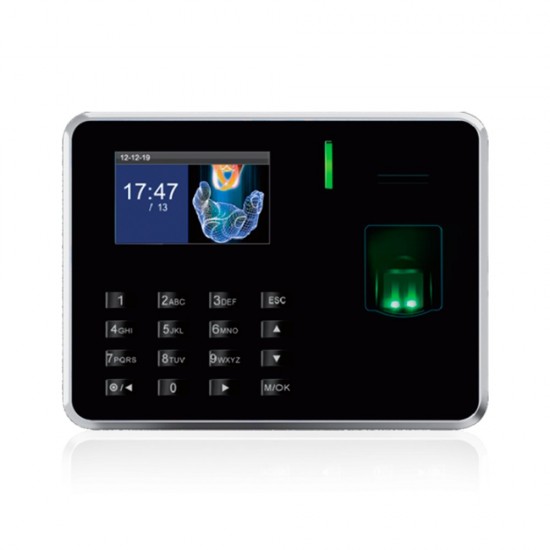

Time Attendance-Access System ZKTeco UA-150

UA-100 series are fingerprint time & attendance terminals with simple access control functions, which can connect with a third party electric lock, exit button. The 2.8 inch TFT screen can display more information vividly, including fingerprint image and verification result,etc. TCP/IP communication is a standard function which makes sure the data transmission between terminal and PC can be easily done within several seconds. Optional internal backup battery insures the device working normally when the power cut off suddenly. It’s an ideal product for SMB market.

ZKTeco

Specifications

Access Control- Time Attendance Controllers
Monitor Controller	2.8'' TFT Color LCD
Communication Type	TCP/IP, USB-Host
Temperature/ Humidity Controller	Operating Temperature 0°C- 45°C/ Operating Humidity 20% - 80%.
Dimensions /weight Controller	185 x 140 x 30 mm
Additional features – controller	Fingerprint Capacity 500. Logs Capacity 50.000. Door Lock, Exit Button. Scheduled-bell, SMS, Workcode, DLST, SSR Report, Self-Service Query, Automatic Status Switch, T9 Input, 9 Digit User ID, ID Card, External Bell. Power Supply 5V DC 0.8A. Backup Battery (Optional). ID Card Capacity 1,000 (Optional).
