ZQ-RS20 J6412 Touch POS

Description

ICS ZQ-RS20 21.5'' Capacitive J6412 USB- RS232 - LAN-Audio – VGA

Integrated POS system with wide 21.5 '' touch screen to meet the expectations according to the sector's activity . Robbust construction, elegant design and upgraded features. With fanless technology, Intel Celeron J6412 2.00GHz FANLESS processor and excellent flat touch screen. Multiple connectivity capabilities USB, RS232, Audio, VGA, LAN, Audio, Second display optional. Wall mount VESA 75x75 optional.

ICS

Specifications

Touch Systems
Monitor	21,5" Capacitive multi-point touch panel
CPU	Intel Celeron J6412 2.00GHz / Fanless
Memory	8GB SODIMM DDR4 1 X SLOT
Disk	128GB M2 SSD
Operating System	Windows 10 IOT, Windows 11
Resolution	1920 x 1080
USB Ports	2 X USB 2.0 , 2 X USB 3.0
Serial Ports	2 X RS232
Ethernet Ports	1 X RJ45 (1000Mbps)

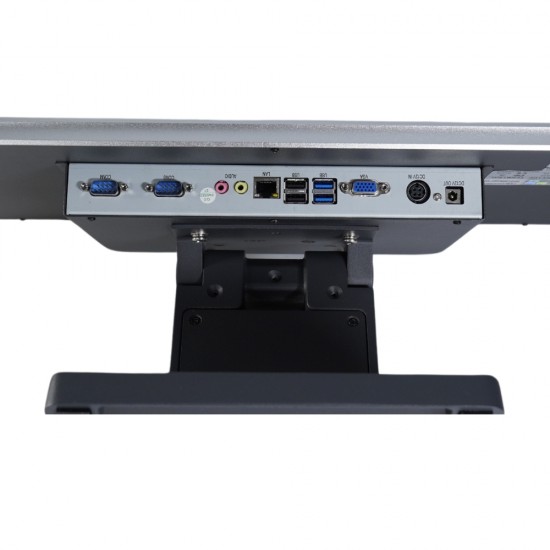

Additional Ports	1 X VGA , 1 X LINE IN (MIC), 1 X LINE OUT (AUDIO) , DC12V (OUT)
Power supply	12V/5A 4 PIN
Temperature/ Humidity	OPERATING : -10 ~ 60ºc, ≤65%RH , STORAGE: -20 ~ ≤85%RH
Dimensions/ Weight	364x340x210mm/ 8.35kg
Additional features Touch Touch Systems	Second display ICS ZQ RS 20 LCD 9,7” . Customer display VFD ICS VFD for ZQ-RS20. Optional: wall mount VESA 75x75.
