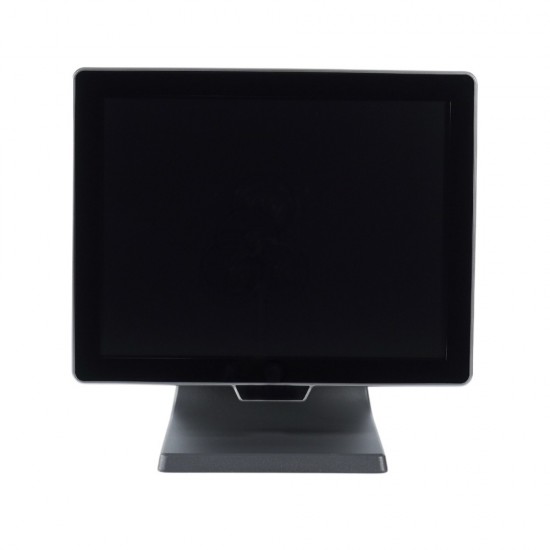

ZQ-T8650 Touch POS i5 6360U

Downloads

File	Size	Download
ZQ-T8650-i5-6360u.pdf	399.57KB	Download

Description

Touch POS ZQ-T8650 15'' CAP, i5 6360U, FANLESS, USB, RS232, LAN, AUDIO, VGA, HDMI

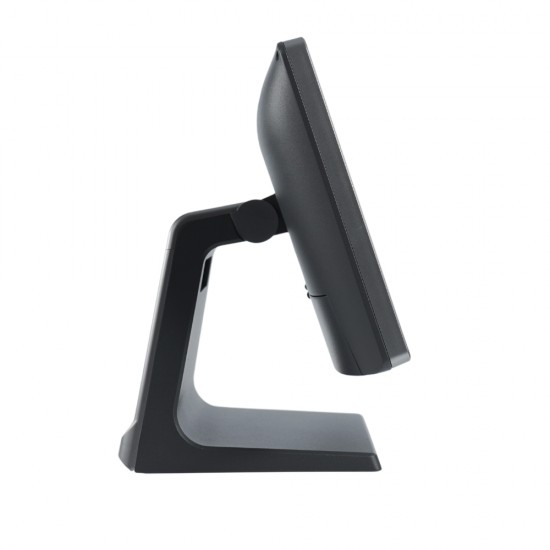

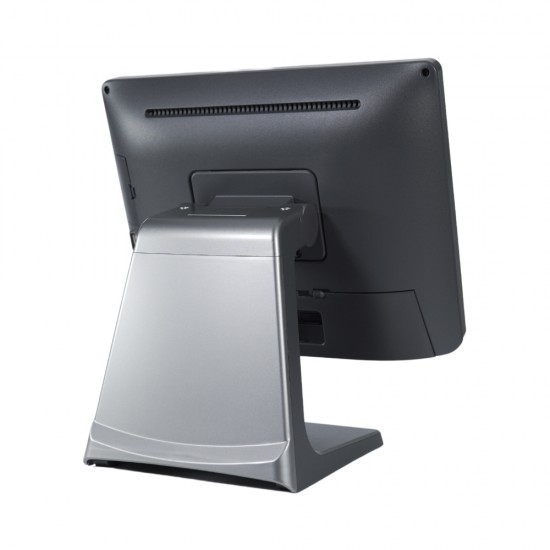

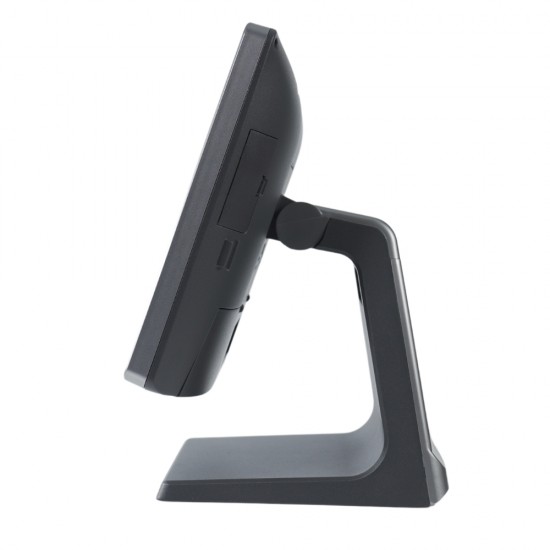

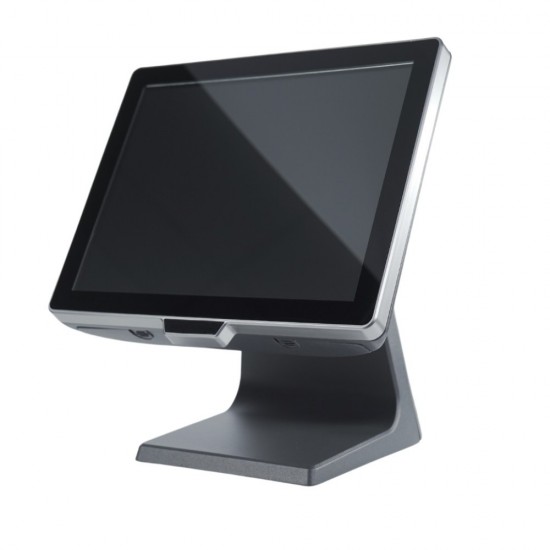

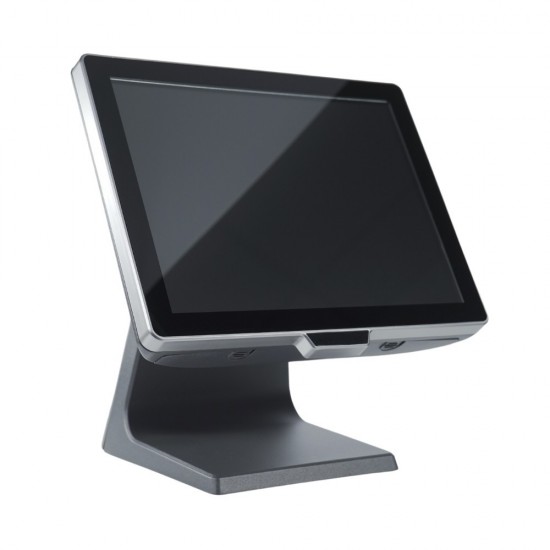

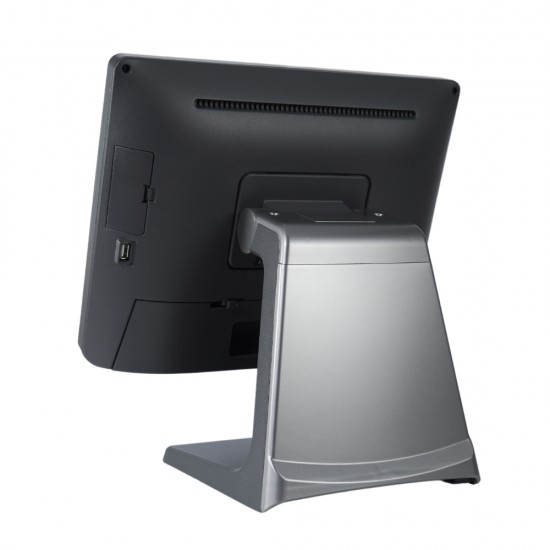

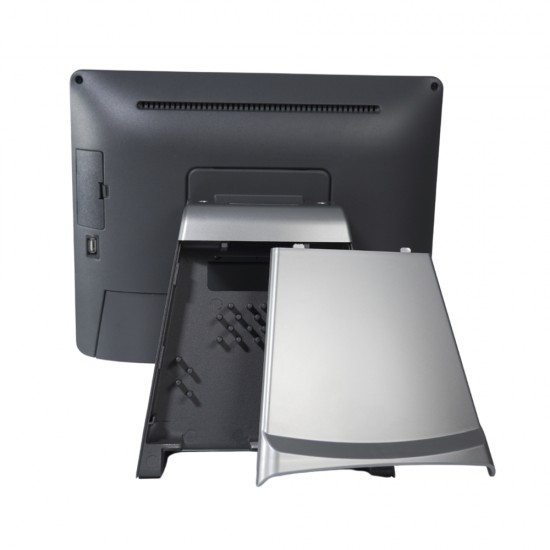

15" PC-based Touch POS Terminal. Monitor housing made by aluminum, with Intel 6360U Core i5, 2.00GHz FANLESS with different interfaces. Various options of peripherals and multi-point capacitive touch solution. The inside is very neat. Rotatable and inseparable cable cover. Easy to add customer display or secondary monitor. Peripheral connection cables could easily go through the base and be fixed well. Pluggable Dallas Lock / MSR modules without cable connection.

ICS

Specifications

Touch Systems
Monitor	15" Capacitive touch panel solution
CPU	Intel® Core® Processor i5-6360U 1.7GHz up to 2.7GHz / FANLESS
Memory	SLOTS DDR4 4GB or 8GB as standard, optional up to 32GB
Disk	SSD 128GB 2.5 as standard, optional up to 512GBSSD
Operating System	Windows 8, Windows 10, Linux (not included)
Resolution	1024 x 768

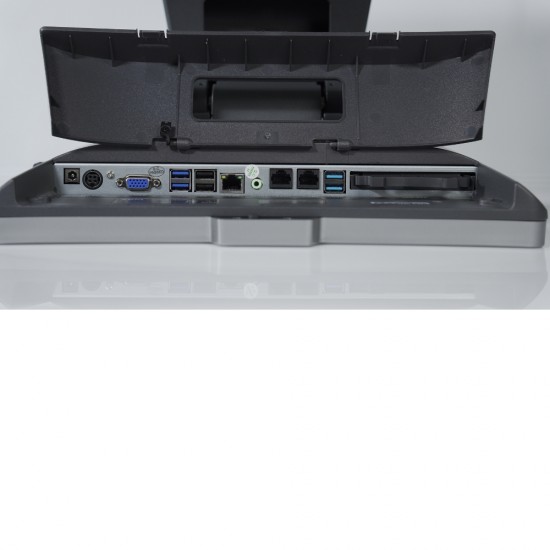

USB Ports	5 x USB 2.0, 2 x USB 3.0
Serial Ports	2 x RS232
Ethernet Ports	1 x LAN Realtek RTL8111H, 1000M (on board)
Additional Ports	1 x VGA/ 1 x Audio output jack/ 1 x HDMI, 1 x MIC-IN, 1 x LINE-OUT, 1 x DC12V_OUT,
Power supply	1 X Power Supply 12V 7A INPUT, 1 X Power Supply 12V 7A OUTPUT
Temperature/ Humidity	Operation Temperature 0 - 60°C - Humidity 0 - 95%
Dimensions/ Weight	330 x 350 x 200mm/ 7,800kg.
Additional features Touch Touch Systems	Audio: Realtek ALC 662HD (on board), Extended Slots: 1 x MINI-PCIE (for 4G/WIFI), 1 x SIM (on board), Customer Display: VFD or 9.7". WALL MOUNT Optional 75x75.
