SP72-H 2D Scanner

SP72-H 2D Scanner

Downloads

File	Size	Download
sp72-series-spec-sheet-en-us (1).pdf	284.24KB	Download
SP72 Series Single-Plane Scanners.pdf	454.88KB	Download

Description

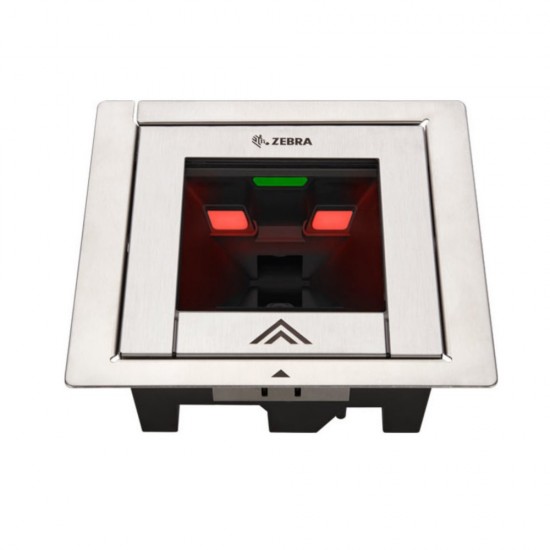

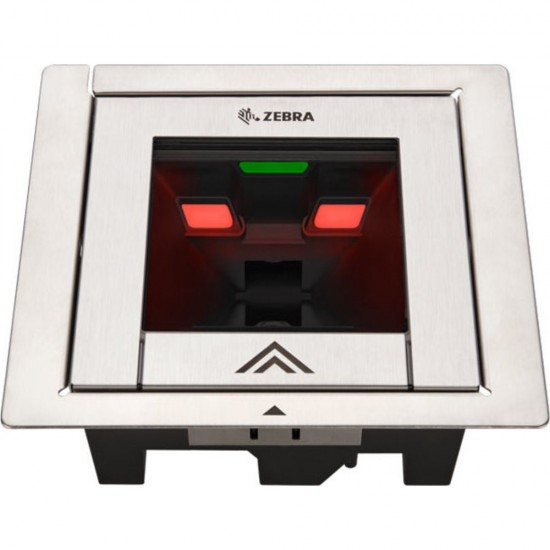

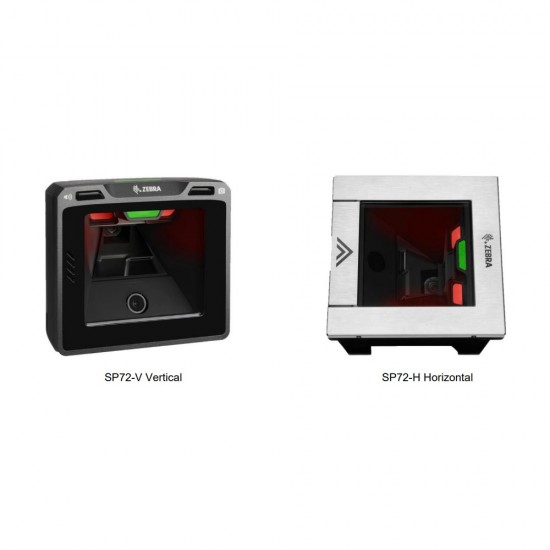

Zebra SP72-H Scanner Horizontal in counter 1D/2D

Innovative features like optional color camera to enable vision-based applications, the SP72 Series scanner frees associates to do higher-priority tasks and better serve shoppers while minimizing the risk of shrink.The horizontal SP72-H offers a zero footprint, in-counter design and is a drop-in replacement for popular legacy installations. Barcodes are captured as quickly as they’re presented. Since there’s less need to precisely position a barcode, cashiers can focus more on the customer and self-checkout users can enjoy a seamless experience. Provides an upward-facing “good decode” LED that can be easily seen by self-checkout attendants and overhead cameras. Your video-based loss prevention system can track the movement of products across the scan area and confirm a green LED for a successful scan. IP52 sealing protects against spills and dust. Multiple on-board interfaces ensure compatibility with all popular POS systems and auto-host detect cables simplify installation. Boosts productivity and reduces shrink with optional EAS support.

ZEBRA

Specifications

Scanners
Reading mode	1D, 2D, Digimarc®, paper and mobile barcode.
Scanning range/ Width of Field	54° H x 35.5° V nominal
Scan Rate Ρυθμός σάρωσης	Up to 120 in./305 cm per second for 13 mil UPC in optimized mode
Resolution	Code 39: 3.0 mil; Code 128: 3.0 mil; Data Matrix: 5.0 mil; QR Code: 5.0 mil
Interfaces	USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
Dimensions	15.2 cm H x 15.2 cm W x 8.6 cm D
Weight	834gr
Ambient light	0 to 8,000 Foot Candles/0 to 86,100 Lux
Symbologies	1D: All major 1D barcodes including Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma). 2D: All major 2D barcodes including PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm. Digimarc barcodes. Minimum Input Resolution: Code 39: 3.0 mil; Code 128: 3.0 mil; Data Matrix: 5.0 mil; QR Code: 5.0 mil
Additional features	Glass SP72-H: Sapphire, Diamond-Like Coating (DLC). Supports over 90 international keyboards. Operating Temperature 32.0° to 104.0° F/0.0° to 50.0° C. Storage Temperature -40.0° to 158.0° F/-40.0° to 70.0° C. Environmental Sealing IP52. Input Voltage Range 4.7 to 5.2 VDC host powered, 11 to 13 VDC external power supply. Accessories: Bucket Mount, Diamond-Like Coated Glass Platter, Sapphire Glass Platter.
