Xenon 1902 2D HHD Scanner

Xenon 1902 2D HHD Scanner

Downloads

File	Size	Download
Xenon1902hColor_DS_RevA_1011_EN.pdf	335.26KB	Download
DRH_DS_RevE_0412_EN.pdf	398.89KB	Download

Description
Video

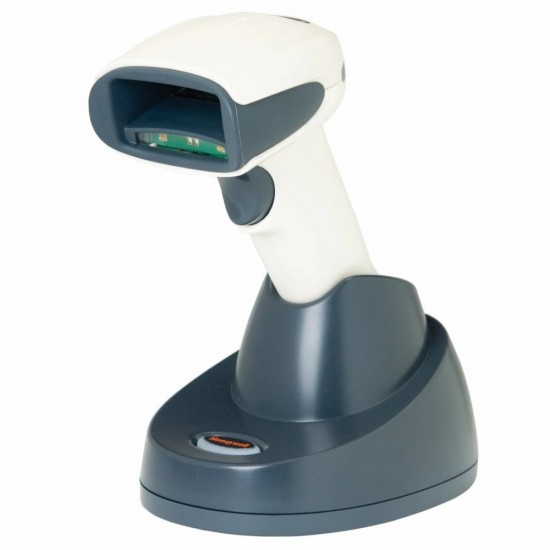

Scanner Honeywell Xenon 1902 2D Wireless Area-Imaging Scanner

Xenon™ 1902h Color, designed specifically for healthcare users, is redefining the capabilities of hand-held scanners. Area-imaging technology features a custom sensor that is optimized for bar code scanning, plus ColorFusion™ Technology which enables color imaging. With industry-leading performance and reliability, Xenon 1902h Color is well suited for a wide variety of healthcare applications that would benefit from the ability to capture color images, plus the freedom of Bluetooth® wireless connectivity. Built with durability in mind, Xenon 1902h Color can withstand up to 50 drops to concrete from distances as high as 6 feet. Additionally, Xenon 1902h Color incorporates disinfectant-ready housing which resists the harmful effects of harsh cleaning agents used commonly in healthcare environments and minimizes the spread of infectious diseases. Backed by a three-year warranty, Xenon 1902h Color is constructed to deliver years of uninterrupted performance.

HONEYWELL

Specifications

Scanners
Reading mode	2D
Scanning range/ Βάθος πεδίου	Scan Angle (HD): Horizontal: 41.4°; Vertical: 32.2°
Scanning range/ Width of Field	Pitch, Skew 45°, 65°
Scan Rate Ρυθμός σάρωσης	Up to 50,000 scans per charge
Resolution	Area Image (838 x 640 pixel array). Motion Tolerance Up to 610 cm/s (240 in/s) for 13 mil UPC at optimal focus
Interfaces	USB, Keyboard Wedge, RS232, IBM 46xx (RS485)
Dimensions	104 mm x 71 mm x 160 mm (4.1˝ x 2.8˝ x 6.3˝)
Weight	214 g (7.5 oz)
Ambient light	100,000 lux
Sealing	IP41
Symbologies	1D, PDF, 2D, Postal and OCR symbologies
Additional features	Battery 1800 mAh Li-ion minimum. Expected Hours of Operation 14 hours. Expected Charge Time 4.5 hours. Operating Temperature 0°C to 50°C (32°F to 122°F). Storage Temperature -40°C to 70°C (-40°F to 158°F).Humidity 0 to 95% relative humidity, non-condensing.
