SG800 BT Linear Imager Scanner

SG800 BT Linear Imager Scanner

Downloads

File	Size	Download
sg800bt-datasheet.pdf	352.92KB	Download

Description

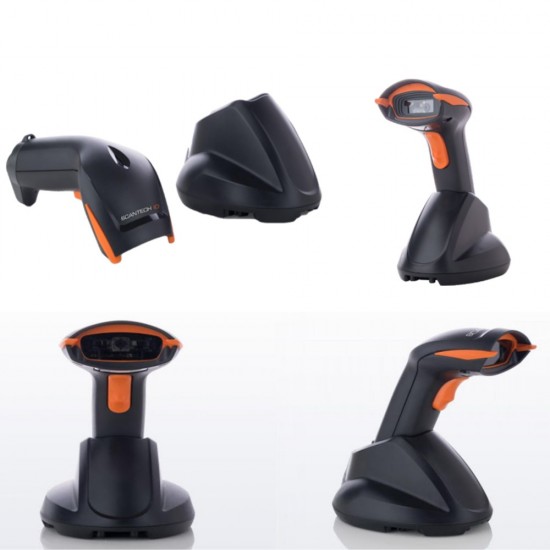

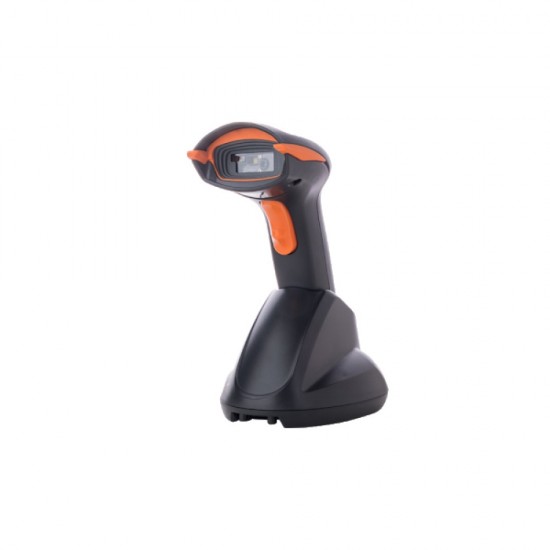

Linear Imager Scanner Scantech SG800 BT

Support major 1D and GS1 Databar linear and stacked codes. Various configurable reading modes supported. Smart detection, reading speed up to 500 scans per second. Support automatic sense reading and is able to read under 0 Lux dark environment. Support multiple interface options, USB HID, Virtual COM and RS-232. Designed as IP42 sealing protection. Both contact and air 16KV Electro-Static discharge. A stand option can be ordered to facilitate hand-free reading options. Vibration when scanning (optional). Applicable on Android tablet or smart phone with optional cable.

SCANTECH

Specifications

Scanners
Reading mode	1D and GS1 Databar linear and stacked codes
Scanning range/ Βάθος πεδίου	Up to 550mm@20mil/0.5mm, PCS90%, Code39
Scanning range/ Width of Field	Horizontal: 45°. Pitch ±10°~65°(±5°). Skew ± 60°(±5°)
Scan Rate Ρυθμός σάρωσης	500 scans per second
Resolution	4mil/0.1mm@PCS90%, Code39
Interfaces	RS232, USB (HID, Virtual COM), KBW
Dimensions	73.5 mm W x 76.2mm H x 173 mm L
Weight	Approx. 170g /5.83oz
Ambient light	100,000 Lux
Sealing	IP42
Additional features	Operating/ Storage Temperature: 0°C to 50°C (32°F to 122°F)/ -20°C to 70°C (-4°F to 158°F). Humidity: 20% to 95%. Voltage DC5V. Operation Consumption 140mA. MTBF 40,000 hours minimum. Drop: 5ft.(150cm) drop on Concrete Surface. Bluetooth V2.1 EDR/ 2.402GHz~2.480GHz.
