SG600 BT Scanner

SG600 BT Scanner
SG600 BT Scanner
SG600 BT Scanner
SG600 BT Scanner
SG600 BT Scanner
SG600 BT Scanner
SG600 BT Scanner
SG600 BT Scanner
SG600 BT Scanner

Downloads

File Size Download
sg-600-sg600_bt.pdf 815.25KB Download

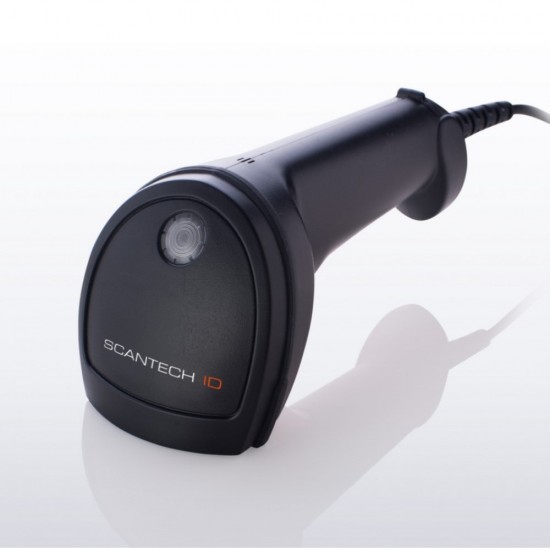

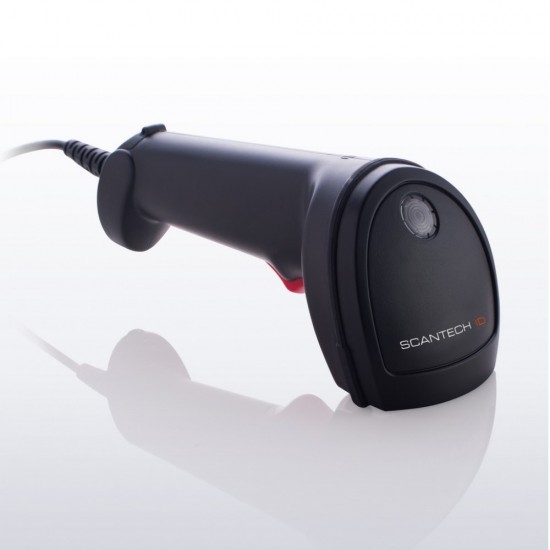

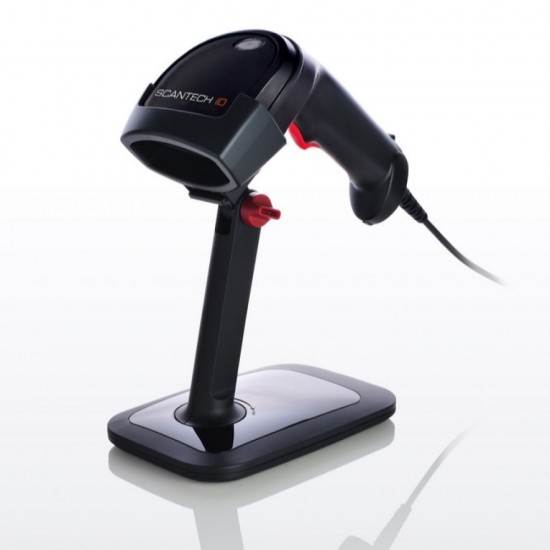

Scanner Scantech SG600 BT

SG600BT is a general purpose wireless gun-type linear imager bar code scanner which is designed especially for retail, logistic and warehousing management market.We include friendly functions with replaceable multi-interface cable options that makes it more easily to be operated by the customers to accommodate it to user environment. Support major 1D codes, GS1 Databar linear and stacked Codes. Automatic detect reading mode. Reading distance up to 50cm (20mil/0.5mm@code39 pcs90%). Smart detection, reading speed up to 500 scans per second.  3 in 1 Combo interface that changes interface by replacing cable. Equipped with Bluetooth V2.1 Class 1 technology, range up to 100m in open space. Supports both SPP and HID profiles can easily pair up with other Bluetooth V2.1 compatible mobile equipments or systems. Support Batch transmission mode, memory capacity stores up to 30,000 inputs of EAN13 barcodes supports IP42 sealing protection.

SCANTECH SCANTECH

Specifications

Scanners
Reading mode 1D
Scanning range/ Βάθος πεδίου 500mm@20mil/ 0.5mm, PCS90%, Code39
Scanning range/ Width of Field 50cm (20mil/0.5mm@code39 pcs90%)
Scan Rate Ρυθμός σάρωσης 500 scans per second
Resolution 4mil/0.1mm@PCS90%
Interfaces SPP and HID proles can easily pair up with other Bluetooth V2.1 compatible mobile equipments or systems
Dimensions 71.13 x 62.61 x 169.27 mm
Weight 110g / 3.88oz
Ambient light 100,000 Lux Max.
Sealing IP42
Symbologies All UPC/EAN/JAN, EAN128 Code, Code 39, Code 39 Full ASCII Code32 / Italian Pharmacy, Code 128, CODABAR/NW7 Interleave 25, Industrial 25, Matrix 25, MSI/PLESSEY, Telepen Code 93, Code 11, China Postage, Code 26, LCD25, GS1 DataBar
Additional features Operating Temperature 0°C to 50°C (32°F to 122°F) Storage Temperature -20°C to 70°C (-4°F to 158°F) Relative Humidity 20% to 95% (Non-condensing) Voltage Battery Li-Ion 3.7V/2600 mAh/ Charge Time Approx. 5 hours/ Reads per Charge 50,000 Times/ Power Consumption Operation 200mA, stand-by: 50mA
