Voyager 9535 1D Scanner

Voyager 9535 1D Scanner

Downloads

File	Size	Download
MS9535.pdf	248.9KB	Download

Description

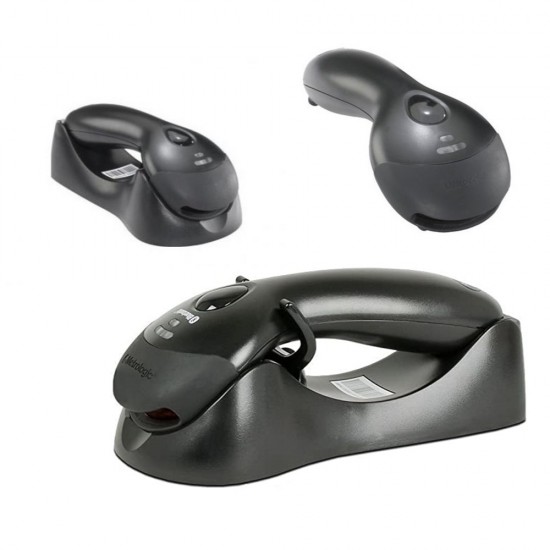

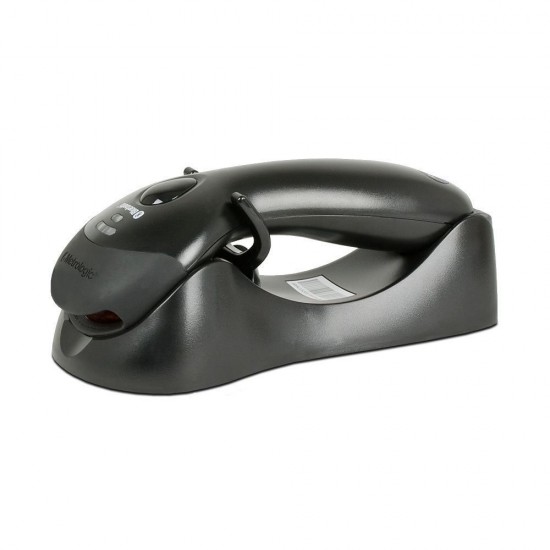

Scanner MS 9535 Voyager 1D USB Bluetooth wireless technology.

Offers convenience and the freedom of mobility by incorporating Bluetooth wireless technology. Advanced technology, high performance and a futuristic design, provides a lightweight, comfortable and easy to use scanning solution. The scanner wakes with a touch of the CodeGate button activating the IR sensor. After scanning a bar code, simply press the CodeGate button and the data is transmitted wirelessly to the host. Operators will find the brightly-lit laser easy to see and to line up on a desired bar code. VoyagerBT is perfect for menu scanning applications. Scanning large or heavy products can be done quickly and easily. Bulky items are also scanned without the need for unnecessary heavy lifting by customers or personnel, making for added convenience. Decodes reduced space symbology (RSS) bar codes and can be used in supermarkets, hypermarkets, warehouse shopping clubs, retailers, light warehouse and manufacturing. Up to 14,000 scans per charge. Adjustable volume and beeper tone. Stylish recharging station, wall or countertop mounting. 10 meter (33') working range. Supports commonly used interfaces including USB. Easy programming using Windows software or bar codes. Decodes RSS-14, RSS Limited and RSS Expanded bar codes.

HONEYWELL

Specifications

Scanners
Reading mode	1D bar codes, Bluetooth wireless technology
Scanning range/ Βάθος πεδίου	0 mm - 203 mm (0” - 8”) for 0.33 mm (13 mil) bar codes
Scanning range/ Width of Field	64 mm (2.5”) @ face; 249 mm (9.8”) @ 203 mm (8.0”)
Scan Rate Ρυθμός σάρωσης	72 scan lines per second
Interfaces	PC Keyboard Wedge, RS232, Light Pen Emulation, Stand Alone. Keyboard, USB (low speed and full speed).
Dimensions	198 x 40 x 45 mm
Weight	149 g (5.3 oz)
Ambient light	4842 Lux. Light Source Visible Laser Diode 650 nm + 10 nm
Sealing	Sealed to resist airborne particulate contaminants
Symbologies	Autodiscriminates all standard 1-D and RSS-14 bar codes for other symbologies call Metrologic.
Additional features	Input Voltage 5 VDC + 0.25 V/ Operating 1.5W / Standby Power 185 mW/ Operating Temperature 0°C to 40°C (32°F to 104°F)/ Storage Temperature -40°C to 60°C (-40°F to 140°F)/ Humidity 5% to 95% relative humidity, non-condensing/ Drop Designed to withstand 1.5 m (5’) drops. Battery Capacity/ Recharge Time 14000 scans per charge/recharge time=2.5 hrs.
